Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS

MOQ: 5000 square meters
Price: $1.88/square meters >=5000 square meters
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Model Number
GCL- bentolelo
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects
Application:
Hotel
Design Style:
Modern
Type:
Voltex Ds, Other Earthwork Products
Weight:
3500g-6500g
Minimum Order Quantity:
5000 square meters
Price:
$1.88/square meters >=5000 square meters
Product Description
Products Description
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 0
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 1
 WHAT IS BENTONITE GEOTEXTILE?
It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)
Product Paramenters
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 2
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 3
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 4
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 5
items
GCL-3
GCL-4
GCL-5
Customized
Comments
weight
3000g-7000g/m2
3000g-8000g/m2
3000g-10000g/m2
3000g-10000g/m2
as request
water content
8-12%
8-12%
8-12%
8-12%
thickness
5-7mm
5-8mm
5-15mm
5-15mm
as request
Swell index of bentonite granular
≥24ml/2g
≥24ml/2g
≥24ml/2g
≥24ml/2g
as request,
from 24-28
ml/2g
nonwoven geotextile
180-350g/m2
180-350g/m2
180-300g/m2
180-350g/m2
weight
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
raw materials, percentage of PP can be customized
Polypropylene woven geotextile
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
Usual stock is 130g/m2 and other weight needs to be customized
Circular or plain
Circular or plain
Circular or plain
Circular or plain
woven method
tensile strength
≥600N/100mm
≥800N/100mm
≥800N/100mm
≥600N/100mm
peel strength
≥40N/10cm
≥50N/10cm
≥40N/10cm
≥40N/10cm
Permeability coefficient(cm/s)
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 6
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 7

Product characters of geosynthetic clay liners

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 8
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 9

ADVANCED PRODUCTION LINES of bentonite clay liners

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 10
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 11

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCL used as the lap between GCL.
Package: 50kg per woven geotextile bag.

Applications of geosynthetic clay liners?
1.waterproof for rooftop garden,basement and so on;
2.waterproof forunderground,railway,city highway,oil drilling and so on;
3.Anti-seepage project of mud and stone reinforce
4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 12

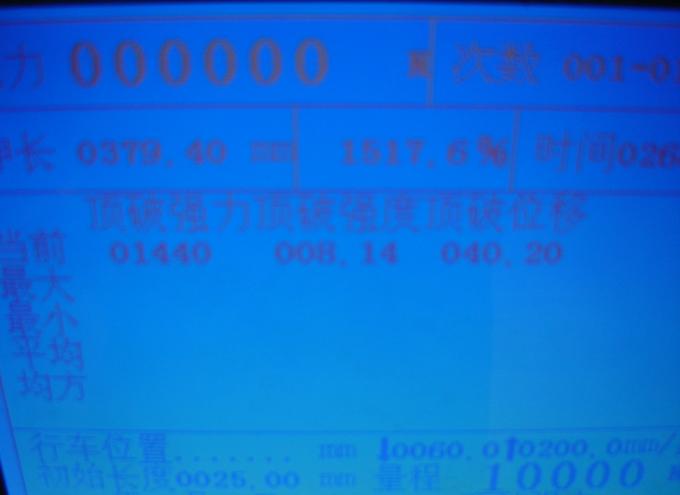

CBR TEST REPORT OF GEOSYNTHETIC CLAY LINERS

It is tested based on the standard of ASTM D6241
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 13

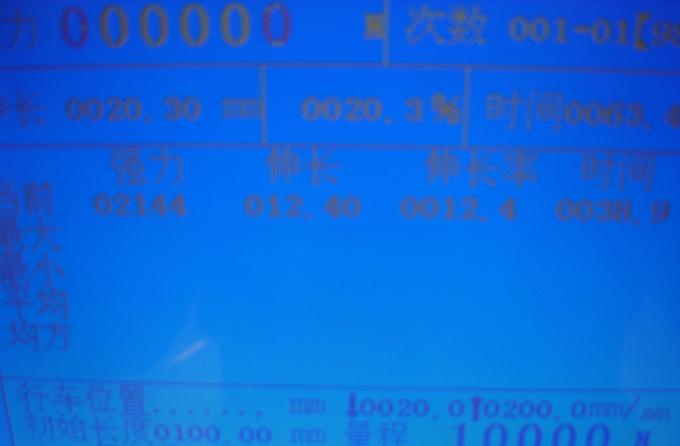

TENSILE STRENGTH TEST OF GEOSYNTHETIC CLAY LINERS

it is tested based on the standard of ASTM D6768
Product packaging
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 14
projects
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 15
Company Profile
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 16
Exhibition
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 17
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 18
Marketing Campaign
Modern Design 6m Width Geosynthetic Clay Liners for Basement Tank Construction Voltex DS 19
