Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects

Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects

MOQ: 2000 square meters
Price: $2.80/square meters >=2000 square meters
Standard Packaging: waterproof film
Supply Capacity: 10000 Square Meter/Square Meters per Day
Detail Information
Place of Origin
Shandong, China
Brand Name
taianhongyuan
Model Number
BENTOFIX-4
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Hotel, Office Building
Design Style:
Modern
Specification:
Eurobent- 5000
Type:
Other Earthwork Products
Weight:
3500g-6500g
Width:
1-6m
Usage:
Earthwork Application
Advantage:
Eco-friendly
Port:
Qingdao
Minimum Order Quantity:
2000 square meters
Price:
$2.80/square meters >=2000 square meters
Packaging Details:
waterproof film
Supply Ability:
10000 Square Meter/Square Meters per Day
Product Description
Products Description
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 0
most popular bentonite membrane for waterproof projects

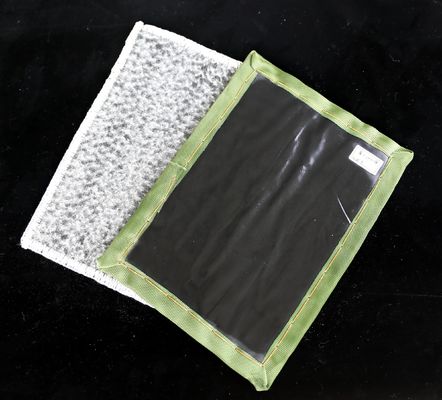

GCL-4 consists of a layer of bentonite encapsulated between two geotextiles (a nonwoven and a woven polypropylene geotextiles), needle punched together and laminated on one side to a polyethylene membrane for maximum performances under a wide variety of field conditions. This integrated matrix of bentonite and needle punched fibers provides high shear strength and allows the GCL-4 to keep low permeability even in presence of adverse installation conditions. The GCL-4 has high internal shear strength characteristics for steep slope applications.
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 1
APPLICATIONS:
GCL-4 is designed for below-grade vertical
and horizontal structural foundation surfaces.
Typical cast-in-place concrete applications
include backfilled concrete walls, earth-covered roofs, structural slabs, tunnels, and property line construction. Applications may include structures under continuous or intermittent. Hydro-static pressure. Where contaminated ground-water or salt-water conditions exist, use GCL-4 with contaminant resistant sodium bentonite. GCL-4 resists higher levels of the following contaminant’s:
nitrates, phosphates, chlorides, sulfates, lime
and organic solvents.
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 2
Product Paramenters
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 3
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 4
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 5
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 6
items
GCL-3
GCL-4
GCL-5
Customized
Comments
weight
3000g-7000g/m2
3000g-8000g/m2
3000g-10000g/m2
3000g-10000g/m2
as request
water content
8-12%
8-12%
8-12%
8-12%
thickness
5-7mm
5-8mm
5-15mm
5-15mm
as request
Swell index of bentonite granular
≥24ml/2g
≥24ml/2g
≥24ml/2g
≥24ml/2g
as request,
from 24-28
ml/2g
nonwoven geotextile
180-350g/m2
180-350g/m2
180-300g/m2
180-350g/m2
weight
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
raw materials, percentage of PP can be customized
Polypropylene woven geotextile
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
Usual stock is 130g/m2 and other weight needs to be customized
Circular or plain
Circular or plain
Circular or plain
Circular or plain
woven method
tensile strength
≥600N/100mm
≥800N/100mm
≥800N/100mm
≥600N/100mm
peel strength
≥40N/10cm
≥50N/10cm
≥40N/10cm
≥40N/10cm
Permeability coefficient(cm/s)
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
Product packaging
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 7
projects
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 8
Company Profile
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 9
Exhibition
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 10
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 11
Marketing Campaign
Eco-friendly Geosynthetic Clay Liners and HDPE Membrane Composite for Landfill Projects 12
