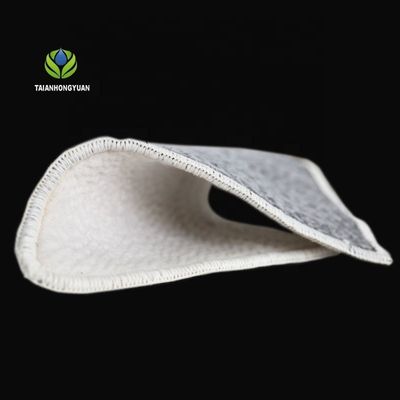

Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners
  • name
  • name
  • name
  • name
  • name
  • name

Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners

MOQ: 10 square meters
Price: $1.92/square meters >=10 square meters
Standard Packaging: white waterproof film
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
SHN
Brand Name
taianhongyuan
Model Number
bentofix-5000
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Apartment, Landfill
Design Style:
Contemporary
Specification:
ASTM
Material:
Fabric+Bentonite
Weight:
3500g-8500g
Port:
Qingdao
Minimum Order Quantity:
10 square meters
Price:
$1.92/square meters >=10 square meters
Packaging Details:
white waterproof film
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 0
most popular bentonite membrane for waterproof projects
PE coating geosynthetic clay liners consists of a layer of bentonite encapsulated between two geotextiles (a nonwoven and a woven polypropylene geotextiles), needle punched together and laminated on one side to a polyethylene membrane for maximum performances under a wide variety of field conditions. This integrated matrix of bentonite and needle punched fibers provides high shear strength and allows the GCL-4 to keep low permeability even in presence of adverse installation conditions. The GCL-4 has high internal shear strength characteristics for steep slope applications.
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 1
APPLICATIONS OG GEOSYNTHETIC CLAY LINERS:
GCL-4 is designed for below-grade vertical and horizontal structural foundation surfaces.
Typical cast-in-place concrete applications include backfilled concrete walls, earth-covered roofs, structural slabs, tunnels, and property line construction. Property line construction applications include soldier pile and lagging, metal sheet piling, shotcrete and stabilized earth retention walls. Applications may include structures under continuous or intermittent.
Product Paramenters
Item
unit
Test method
specifications
GCL-PE4000
GCL- PE 5500
GEOTEXTILE
Woven geotextile layer
g/m2
ASTM D5261
130
130
Nonwoven geotextile
PP
g/m2
ASTM D5261
180/200
200/210/220
PET
g/m2
ASTM D5261
180/200
200/220/300
BENTONITE
Swell index
ml/2g
ASTM D5890
≥24
≥25
Mass per unit area
g/m2
ASTM D5993
≥4000
≥5500
GEOSYNTHETIC CLAY LINER
Mass per unit area
g/m2
ASTM D5261
≥4400
≥5800
Grab tensile strength
MD
N
ASTM D4632
≥700
≥700
CD
N
ASTM D4632
≥500
≥500
Peel strength
N/10cm
ASTM D6469
≥60
≥60
CBR puncture strength
N
ASTM D6241
≥1000
≥1000
Elongation
%
ASTM D6241
≥10
≥10
Permeability/hydrated conductivity
m/s
ASTM D5887
≤1.5×10-12
≤1.5×10-12
Fluid loss
ml
ASTM D5891
≤18
≤18
HDPE GEOMEMRBANE
thickness
mm
ASTM D5199
≥0.1/0.2/0.3
≥0.1/0.2/0.3
Peel strength
N/10cm
ASTM D6469
≥60
≥60
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 2
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 3
Certifications
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 4
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 5
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 6
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 7
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 8
Product packaging
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 9
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 10
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 11
Exhibition
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 12
Marketing Campaign
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 13
projects
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 14
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 15
Company Profile
Contemporary Design Waterproofing Bentonite Blanket 5000g/m2 Geosynthetic Clay Liners 16
