Natural Sodium Swelling Waterstop Bentonite Bentofix Geotextile Geosynthetic Clay Liners

MOQ:	1000 square meters
Price:	$1.99/square meters >=1000 square meters
Standard Packaging:	waterproof film
Supply Capacity:	10000 Square Meter/Square Meters per Day

Detail Information

Product Description

Detail Information

Place of Origin

Shandong, China

Brand Name

taianhongyuan

Model Number

GCL-4

Warranty:

Lifetime

After-sale Service:

Online Technical Support, Onsite Installation, Onsite Inspection, Free Spare Parts, Return And Replacement

Project Solution Capability:

Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation

Application:

Villa

Design Style:

Modern

Specification:

BENTOTEX

Type:

Waterproof Membrane

Weight:

3500g-6500g

Port:

Qingdao

Minimum Order Quantity:

1000 square meters

Price:

$1.99/square meters >=1000 square meters

Packaging Details:

waterproof film

Supply Ability:

10000 Square Meter/Square Meters per Day

Product Description

Products Description

most popular bentonite membrane for waterproof projects

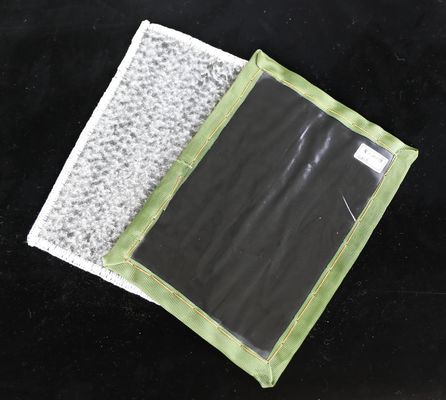

GCL-4 consists of a layer of bentonite encapsulated between two geotextiles (a nonwoven and a woven polypropylene geotextiles), needle punched together and laminated on one side to a polyethylene membrane for maximum performances under a wide variety of field conditions. This integrated matrix of bentonite and needle punched fibers provides high shear strength and allows the GCL-4 to keep low permeability even in presence of adverse installation conditions. The GCL-4 has high internal shear strength characteristics for steep slope applications.

APPLICATIONS:

GCL-4 is designed for below-grade vertical and horizontal structural foundation surfaces.
Typical cast-in-place concrete applications include backfilled concrete walls, earth-covered roofs, structural slabs, tunnels, and property line construction. Property line construction applications include soldier pile and lagging, metal sheet piling, shotcrete and stabilized earth retention walls. Applications may include structures under continuous or intermittent.

Product Paramenters

Item		unit	Test method	specifications
Item		unit	Test method				GCL-PE4000	GCL- PE 5500
GEOTEXTILE
Woven geotextile layer		g/m2	ASTM D5261	130	130
Nonwoven geotextile	PP	g/m2	ASTM D5261	180/200	200/210/220
Nonwoven geotextile		PET	g/m2	ASTM D5261	180/200	200/220/300
BENTONITE
Swell index		ml/2g	ASTM D5890	≥24	≥25
Mass per unit area		g/m2	ASTM D5993	≥4000	≥5500
GEOSYNTHETIC CLAY LINER
Mass per unit area		g/m2	ASTM D5261	≥4400	≥5800
Grab tensile strength	MD	N	ASTM D4632	≥700	≥700
Grab tensile strength		CD	N	ASTM D4632	≥500	≥500
Peel strength		N/10cm	ASTM D6469	≥60	≥60
CBR puncture strength		N	ASTM D6241	≥1000	≥1000
Elongation		%	ASTM D6241	≥10	≥10
Permeability/hydrated conductivity		m/s	ASTM D5887	≤1.5×10-12	≤1.5×10-12
Fluid loss		ml	ASTM D5891	≤18	≤18
HDPE GEOMEMRBANE
thickness		mm	ASTM D5199	≥0.1/0.2/0.3	≥0.1/0.2/0.3
Peel strength		N/10cm	ASTM D6469	≥60	≥60
