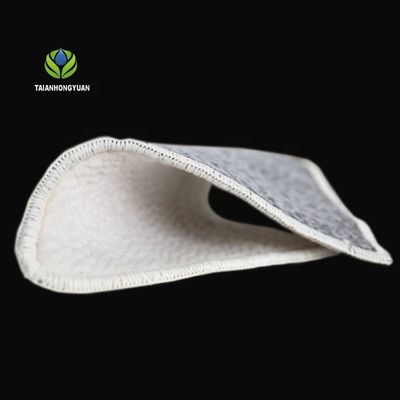

Name: Artificial Lake Landfill Landscape Liner Bentonite Geosynthetic Clay Liner
Brand: TAIAN HONGYUAN
SKU: GCL-3
Price: 3.96 USD
Availability: InStock
Rating: 5 (147 reviews)

MOQ:	2 square meters
Price:	$3.96/square meters 2-49999 square meters
Standard Packaging:	waterproof film
Supply Capacity:	20000 Square Meter/Square Meters per Day

Detail Information

Product Description

Detail Information

Place of Origin

Shandong, China

Brand Name

TAIAN HONGYUAN

Model Number

GCL-3

Warranty:

5 Years

After-sale Service:

Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement

Project Solution Capability:

Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation

Application:

Park

Design Style:

Modern

Specification:

4000-9000G/M2

Material:

Geotextile+bentonite+non Woven Fabric

Keyword:

Bentonite Waterproof Blanket

Product Name:

Bentonite Geosynthetic Clay Liner Gcl

Usage:

Ecological Slope Protection System

Length:

Request

Width:

1-6m(at Request)

Type:

Waterproof Membrane

Feature:

1)Strong Compactness 2)permanent Waterproof Performance

Weight:

5000g-9000g

Certificate:

ISO9001

Port:

QINGDAO

Minimum Order Quantity:

2 square meters

Price:

$3.96/square meters 2-49999 square meters

Packaging Details:

waterproof film

Supply Ability:

20000 Square Meter/Square Meters per Day

Product Description

Products Description

GCL

As a new type of environmentally friendly and ecological composite anti-seepage material, Bentonite Waterproof Blanket has been widely used in civil engineering such as water conservancy, environmental protection, transportation, railway, civil aviation and other civil engineering with its unique anti-leakage performance. Foundation treatment and capping of waste landfills, seepage prevention of artificial lakes, reservoirs, channels, rivers, roof gardens, seepage prevention of famous underground structures such as basements, subways, tunnels, and underground passages, etc.

Product Paramenters

Items	Technical index
Items		GCL-NP	GCL-OF	GCL-AH
Mass area ratio (g/m2)	≥4000	≥4000	≥4000
Swelling coefficient of Bentonite(ml/2g)	≥24	≥24	≥24
Ethylene blue adsorbed(g/100g)	≥30	≥30	≥30
Tensile strength(N/100mm)	≥600	≥650	≥600
Elongation at maximum load (%)	≥10	≥10	≥8
Peel strength (N/100mm)	≥40	≥40	≥40
Filtration (ml)	≤18	≤18	≤18
Durability of Bentonite (ml/2g)	≥20	≥20	≥20

Geosynthetic clay liners (GCLs) are an innovative waterproofing solution that have gained popularity in recent years. They are made up of a layer of bentonite clay, sandwiched between two geotextile layers, creating a barrier that is effective against water and other liquids. GCLs offer several benefits, including:

Versatility: GCLs can be used in a wide range of applications, from landfill liners to transportation infrastructure projects.

Environmental friendliness: GCLs are made up of natural materials and have a low environmental impact, making them an eco-friendly option.

Cost-effective: GCLs are typically more affordable than traditional waterproofing solutions, such as concrete and asphalt.

Easy installation: GCLs can be installed quickly and easily, reducing construction time and labor costs.

High durability: GCLs are resistant to UV rays, chemicals, and punctures, making them a reliable and long-lasting waterproofing solution.

Overall, geosynthetic clay liners offer an effective, versatile, and cost-effective waterproofing solution, making them a popular choice for construction and infrastructure projects worldwide..

ADVANCED PRODUCTION LINES

The company has the most advanced production equipment, with a complete production process, can produce 20000m2 GCL per day, product quality compliance with international standards.

Construction drawing of Sri Lanka Water Park

Construction drawing of the artificial lake

Landfill construction drawing

Product Quality Control Diagram

Product packaging
