Onsite Installation Swelling Waterproof Bentonite Sheet for Geosynthetic Clay Liners

Products

Construction Water Stop Strips

Waterproof Geosynthetic Material

Earthwork Geotechnical Products

Onsite Installation Swelling Waterproof Bentonite Sheet for Geosynthetic Clay Liners

MOQ:	5000 square meters
Price:	$1.00 - $5.00/square meters
Standard Packaging:	waterproof film
Supply Capacity:	10000 Square Meter/Square Meters per Day

Detail Information

Product Description

Detail Information

Place of Origin

Shandong, China

Brand Name

taianhongyuan

Model Number

bento-1

Warranty:

Lifetime

After-sale Service:

Online Technical Support, Onsite Installation, Onsite Inspection, Free Spare Parts, Return And Replacement

Project Solution Capability:

Graphic Design, Total Solution For Projects

Application:

Villa

Design Style:

Modern

Type:

Needle Punched Fabric, Waterproof Membrane

Weight:

3500g-6500g

Port:

Qingdao

Minimum Order Quantity:

5000 square meters

Price:

$1.00 - $5.00/square meters

Packaging Details:

waterproof film

Supply Ability:

10000 Square Meter/Square Meters per Day

Product Description

Products Description

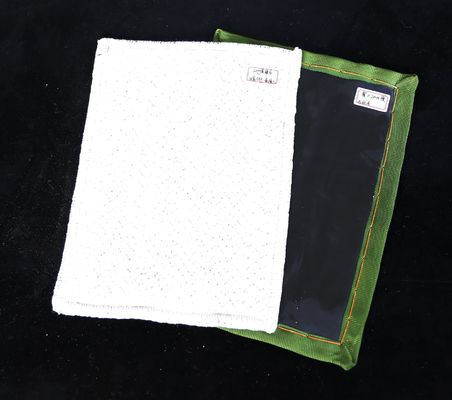

BENTONITE GEOTEXTILE

It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)

Product Paramenters

items	GCL-3	GCL-4	GCL-5	Customized	Comments
weight	3000g-7000g/m2	3000g-8000g/m2	3000g-10000g/m2	3000g-10000g/m2	as request
water content	8-12%	8-12%	8-12%	8-12%
thickness	5-7mm	5-8mm	5-15mm	5-15mm	as request
Swell index of bentonite granular	≥24ml/2g	≥24ml/2g	≥24ml/2g	≥24ml/2g	as request, from 24-28 ml/2g
nonwoven geotextile	180-350g/m2	180-350g/m2	180-300g/m2	180-350g/m2	weight
nonwoven geotextile		Polypropylene or polyester	Polypropylene or polyester	Polypropylene or polyester	Polypropylene or polyester	raw materials, percentage of PP can be customized
Polypropylene woven geotextile	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2	Usual stock is 130g/m2 and other weight needs to be customized
Polypropylene woven geotextile		Circular or plain	Circular or plain	Circular or plain	Circular or plain	woven method
tensile strength	≥600N/100mm	≥800N/100mm	≥800N/100mm	≥600N/100mm
peel strength	≥40N/10cm	≥50N/10cm	≥40N/10cm	≥40N/10cm
Permeability coefficient(cm/s)	≤5.0×10-11	≤5.0×10-11	≤5.0×10-11	≤5.0×10-11

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity

ADVANCED PRODUCTION LINES

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCL used as the lap between GCL.
Package: 50kg per woven geotextile bag.

Applications:

1.waterproof for rooftop garden,basement and so on;

2.waterproof forunderground,railway,city highway,oil drilling and so on;

3.Anti-seepage project of mud and stone reinforce

4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;
