Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry
  • name
  • name
  • name
  • name
  • name
  • name

Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry

MOQ: 1000 square meters
Price: $5.96/square meters 1000-9999 square meters
Standard Packaging: waterproof film
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Model Number
HY-TPO
Warranty:
5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Hotel
Design Style:
Modern
Type:
1-2MM, Waterproof Menbrane
Product Name:
TPO Waterproof Membrane
Thickness:
1.2mm 1.5mm 1.8mm
Color:
Black
Usage:
Roof Waterproof Projects
Length:
20m
Keyword:
TPO Roofing Material
Width:
1m-2m
Feature:
High Strength
Certificate:
ISO
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$5.96/square meters 1000-9999 square meters
Packaging Details:
waterproof film
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description

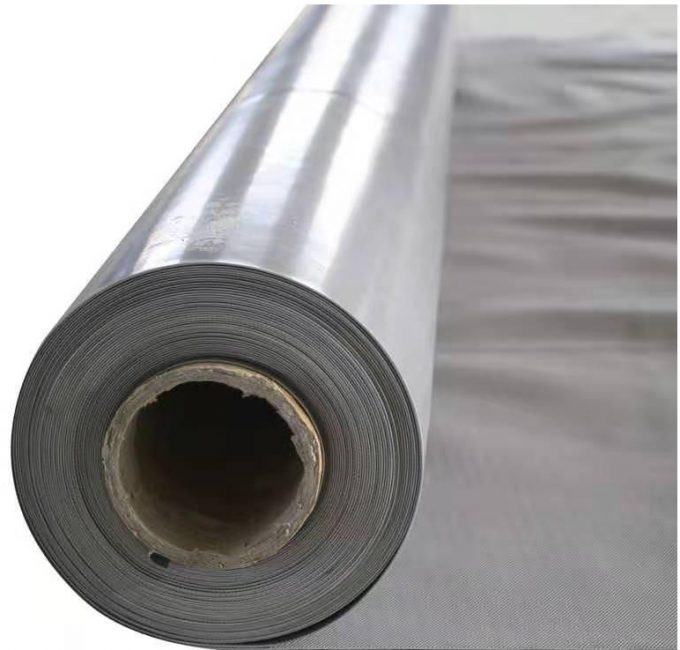

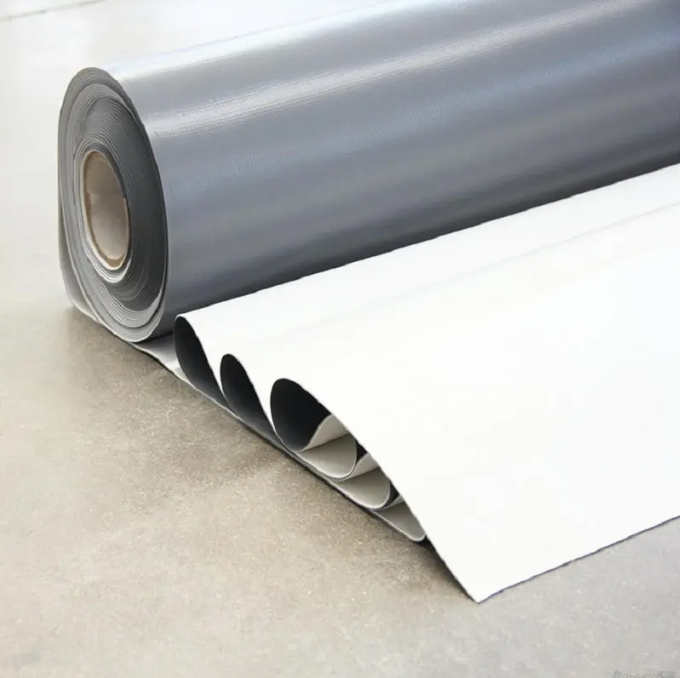

Products Description

(TPO) - self-adhesive membrane waterproofing membrane

(TPO) -TBL self-adhesive membrane waterproofing membrane is composed of thermoplastic elastomer sheets (TPO), polymer self-adhesive adhesives (hot melt adhesive or butyl adhesive), and isolation membranes. The membrane has excellent properties such as high tensile strength, aging resistance, low-temperature flexible automatic healing, weldability, and root puncture resistance. It can be firmly bonded to concrete structures using wet and dry laying processes, and is a high-end waterproofing system.
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 0
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 1
Product specifications
Thickness: 1.2mm 1.5mm 1.8mm Width: 1-2M Length: ≥ 20M
Specification
NO.
Project
Indicator (H)
1
TENSILE PROPERTY
Tensile strength/MPa                    ≥
12.0
 Fracture elongation rate/%           ≥
500
2
Heat treatment size change rate/%                                                           ≤
2.0
3
Low temperature bending
No cracks at -40 ℃
4
Impermeability
0.3MPa, impermeable for 2 hours
5
impact resistance
0.5kg · m, impermeable
6
Joint peeling strength/(N/mm)                                                                 ≥
4.0 or damaged coil material
7
Right angle tear strength/(N/mm)                                                            ≥
60
8
Water absorption rate (70 ℃ 168h)/%                                                     ≤
4.0
9
Thermal aging
(115 ℃)
Time/h
627
appearance
No bubbles, cracks, delamination, bonding, and pores
Tensile strength retention rate/%                  ≥
90
Breaking elongation retention rate/%            ≥
90
Low temperature bending
No cracks at -40 ℃
10
chemical resistance
appearance
No bubbles, cracks, delamination, bonding, and pores
Tensile strength retention rate/% ≥
90
Breaking elongation retention rate/% ≥
90
Low temperature bending
No cracks at -40 ℃
11
Artificial climate accelerated aging
Time/h
1500h
appearance
No bubbles, cracks, delamination, bonding, and pores
Tensile strength retention rate/% ≥
90
Breaking elongation retention rate/% ≥
90
Low temperature bending
No cracks at -40 ℃
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 2

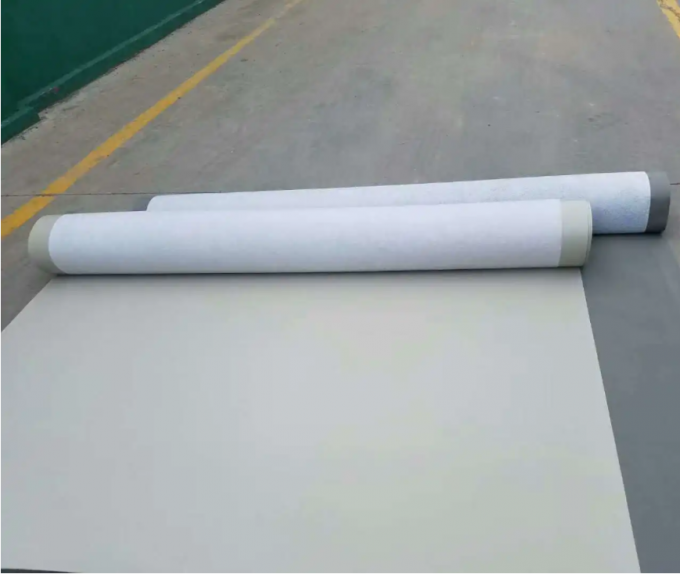

Product features
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 3
TPO Product Features
1. Good flexibility: Soft to the touch, with good adhesion between the coil material and the surface of the base layer and at the corners. 2. Long service life: The sheet does not add any plasticizer, maintaining long-term weather resistance and not aging. 3. Good resistance to high and low temperatures: It can be used for a long time in an environment between -40 ℃ and 120 ℃ without any changes. 4. Weldability: The lap joint can be directly welded using a hot air welding machine at a temperature between 400 ℃ and 550 ℃, with strong operability. 5. Good self-adhesiveness: The polymer self-adhesive film has good initial adhesion and strong cohesion, and is firmly bonded after reacting with concrete.

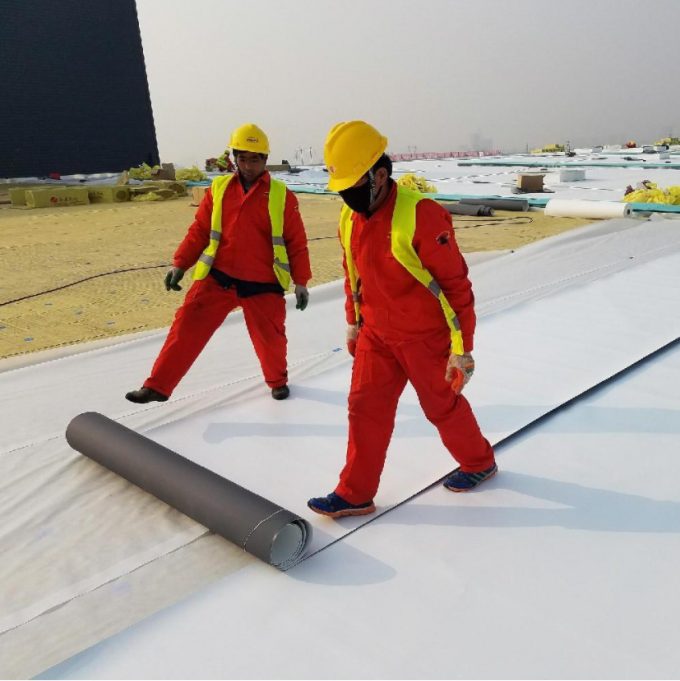

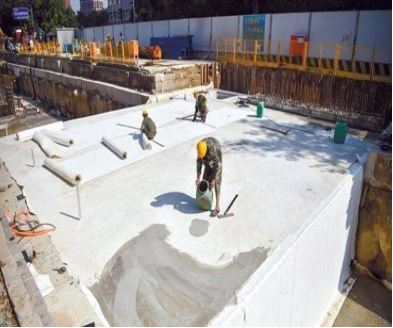

Application Scenarios
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 4
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 5
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 6
Product application scope
ndustrial and civil buildings Foundation Subway Underground comprehensive pipe gallery, etc Waterproof engineering project.

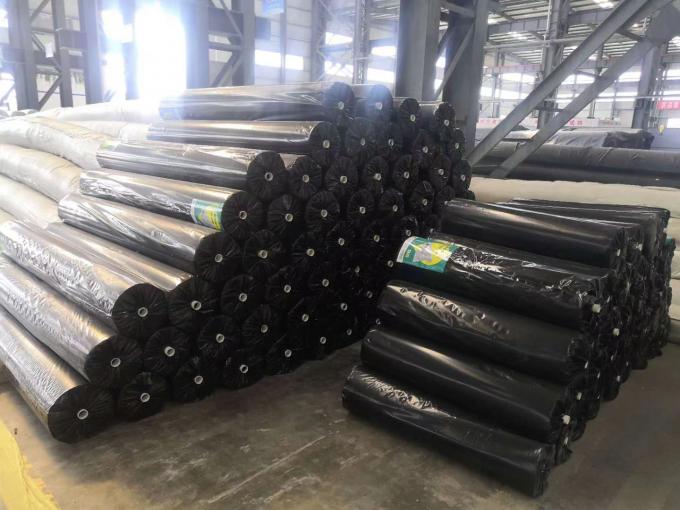

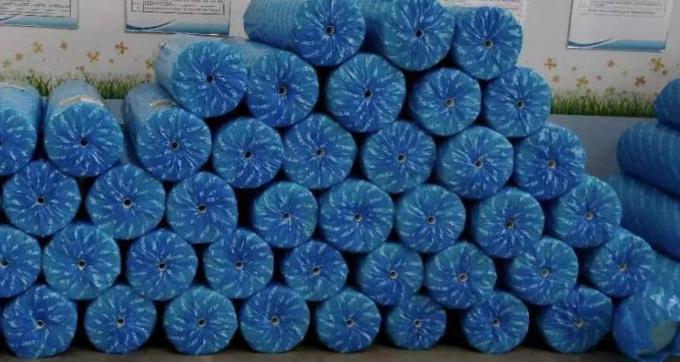

Packing & Delivery
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 7
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 8
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 9
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 10
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 11
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 12
Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry 13
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
