Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof
  • name
  • name
  • name
  • name
  • name
  • name

Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof

MOQ: 1000 square meters
Price: $1.98/square meters >=1000 square meters
Standard Packaging: Plastic Packing Belts
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Certification
ISO9001
Model Number
HY-DB
Warranty:
5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Hotel
Design Style:
Modern
Type:
Waterproof Board
Material:
HDPE
Shape:
Rectangle
Core Material:
OTHER
Format:
OTHER
Product Name:
Drainage Board
Color:
Black
Usage:
Engineering Construction Waterproofing
Function:
Contruction Waterproof
Feature:
Durable
Keywords:
Water Proofing Products
Size:
Accept Customized
Advantage:
Easy Construction
Thickness:
1mm
Minimum Order Quantity:
1000 square meters
Price:
$1.98/square meters >=1000 square meters
Packaging Details:
Plastic Packing Belts
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 0
Drainage Board

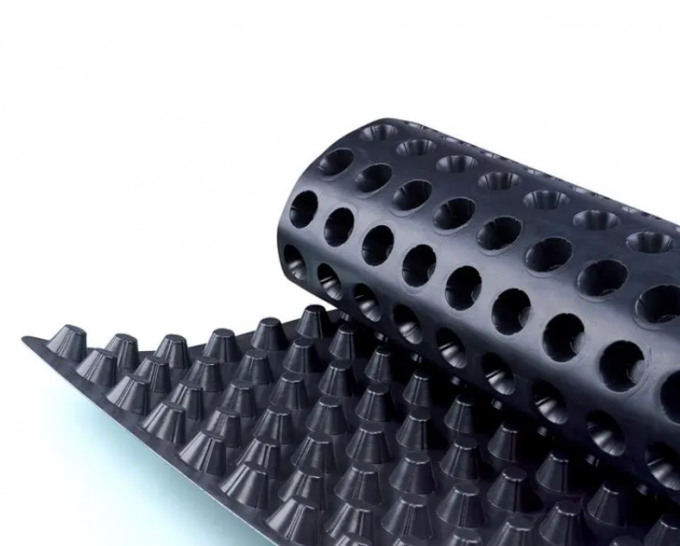

HDPE drainage board, also known as cavity drain board, drainage membrane, dimple board for drainage, is widely used in many civil
projects, with good performance of waterproofing on the surface of roofs, basement and retaining walls.

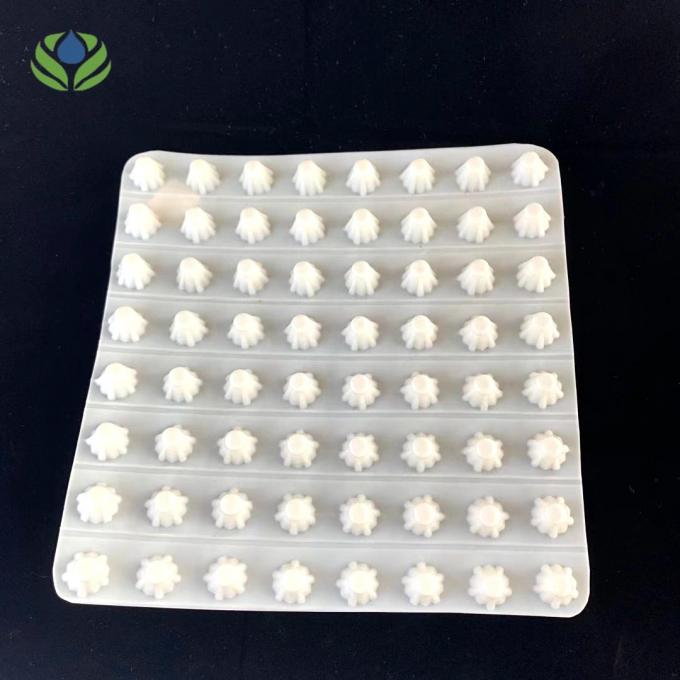

Drainage Board with holes is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the
surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas
can go through freely between dimples.

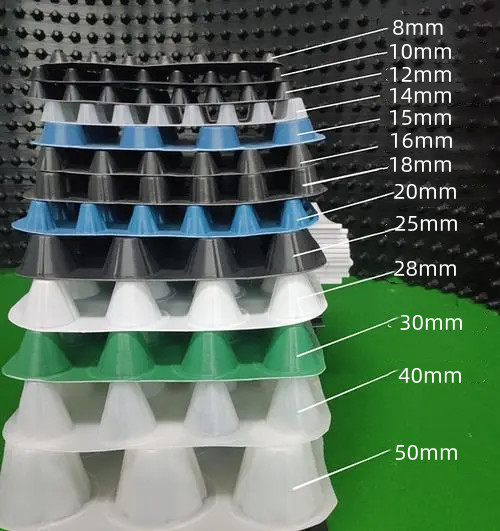

The dimple drainage board can be thickness in 08 mm, 10 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm and 60 mm.
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 1
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 2
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 3
Product Paramenters
Item
Item
Index
Tension at 10% Elongation (N/100mm) ≥
Tension at 10% Elongation (N/100mm) ≥
350
Max.Tension (N/100mm) ≥
Max.Tension (N/100mm) ≥
600
Elongation at Break (％) ≥
Elongation at Break (％) ≥
25
Tearing Strength (N) ≥
Tearing Strength (N) ≥
100
Compression
Maximum Strength at Compression Rate of 20％≥
150
Performance After Full Compression
No Cracks
Flexibility at Low Temperature
- 10℃ No Cracks





Heat Aging (80℃，168h)
Tension Retention at 10% Elongation
80
Max.Tension Retention(％)
90
Retention Rate of Elongation at Break (％) ≥
70
Max.Strength Retention Rate at Compression Rate of 20%,≥
90
Performance After Full Compression
No Cracks
Flexibility at Low Temperature
No Cracks
Longitudinal Flow Capacity (Lateral Pressure 150 KPa)
10
Product features
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 4
Main Features
(1)Waterproofing and drainage : from a channel,which water and gas can go through;
(2)Sound insulation and vibration isolation;
(3)Chemincal resistance,resist to plants' root;
(4)Easy to construction;
(5)Long life time.

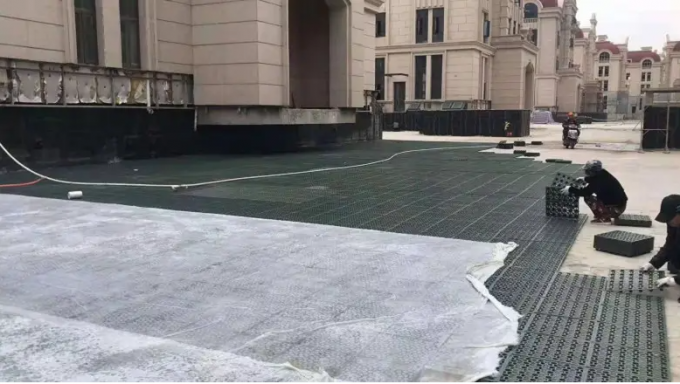

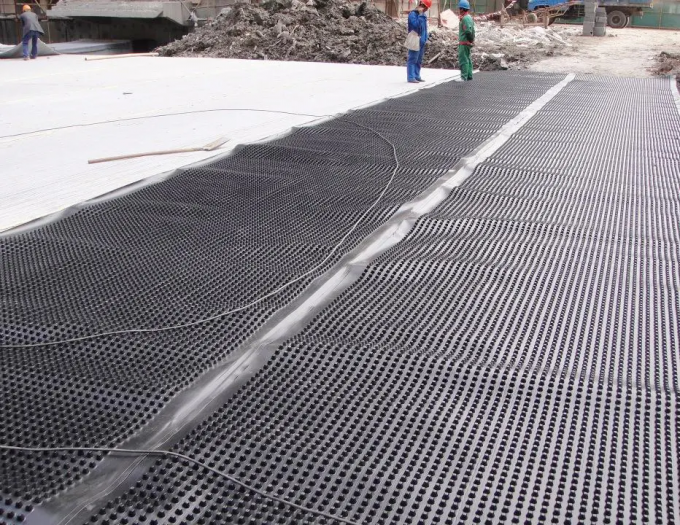

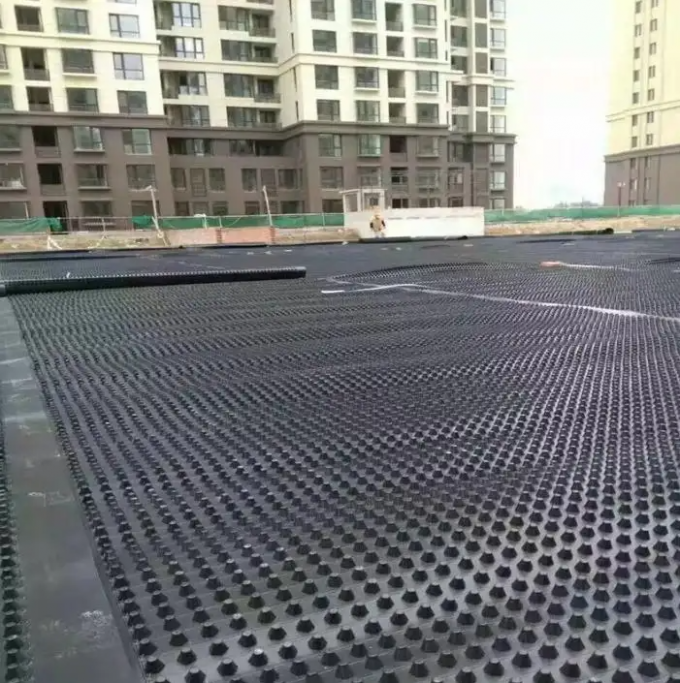

Application Scenarios
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 5
Application

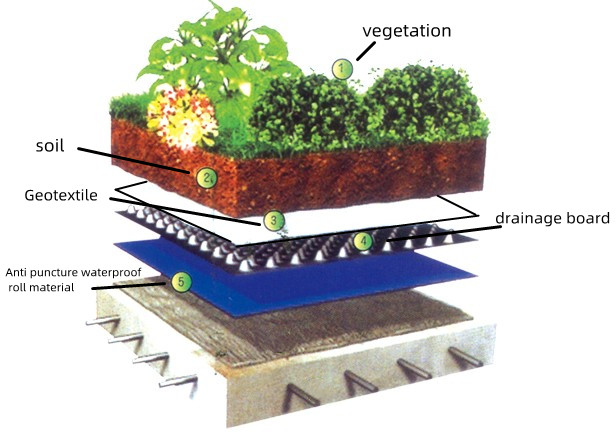

1. Greening Project
The garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc
2. Municipal Engineering
Airport, road embankment, subway, tunnel, landfill, etc
3. Construction
The upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc
4. Water Conservancy Project
The reservoir seepage water, reservoir, lake water seepage control, etc
5. Traffic Engineering
Highway, railway basement, roadbed, dam and slope protection layer, etc
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 6
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 7
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 8
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 9
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 10
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 11
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 12
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 13
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Recommended Products
Black Embossed Polythene Damp Proof Course for Wall Hotel Construction Waterproof

Black Embossed Polythene Damp Proof Course for Wall Hotel Construction Waterproof

Contact Now
Swelling Rubber Waterstop for Sealing Concrete Crack Nipples in Engineering Construction

Swelling Rubber Waterstop for Sealing Concrete Crack Nipples in Engineering Construction

Contact Now
Black HDPE Geomembrane 2m Width Shrimp Liner for Aquaculture Pond Lining and Farming

Black HDPE Geomembrane 2m Width Shrimp Liner for Aquaculture Pond Lining and Farming

Contact Now
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof

Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof

Contact Now
Hotel Waterproof Materials Geocomposite Clay Liner with Sodium Bentonite WIDTH 1m-6m

Hotel Waterproof Materials Geocomposite Clay Liner with Sodium Bentonite WIDTH 1m-6m

Contact Now
Waterproof Membrane Geotextile Bentonite Non Woven Fabric for Reservoir Clay Liners

Waterproof Membrane Geotextile Bentonite Non Woven Fabric for Reservoir Clay Liners

Contact Now
Length Client's Requirement HDPE Geomembrane Waterproof for Fish Farm Pond Liner Sheet

Length Client's Requirement HDPE Geomembrane Waterproof for Fish Farm Pond Liner Sheet

Contact Now
0.5mm Thickness HDPE Geomembrane for Fish Farm Pond Liner in Waterproof Material

0.5mm Thickness HDPE Geomembrane for Fish Farm Pond Liner in Waterproof Material

Contact Now
Waterproof Membrane Bentonite Clay Liner 5000-8000G/M2 for Basement and Pond Installation

Waterproof Membrane Bentonite Clay Liner 5000-8000G/M2 for Basement and Pond Installation

Contact Now
Anti-Aging UV Resistance HDPE Geomembrane Liner in 15m-50M Length for Shrimp Pond

Anti-Aging UV Resistance HDPE Geomembrane Liner in 15m-50M Length for Shrimp Pond

Contact Now
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction

5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction

Contact Now
products
PRODUCTS DETAILS
Products

Geosynthetic Clay Liners

Bentonite Clay Liners

Construction Water Stop Belts

Construction Water Stop Strips

Waterproof Geosynthetic Material

Earthwork Geotechnical Products

Plastic Package Nets

WPC Wall Pannels
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof
  • name
  • name
  • name
  • name
  • name
  • name
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof
MOQ: 1000 square meters
Price: $1.98/square meters >=1000 square meters
Standard Packaging: Plastic Packing Belts
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Certification
ISO9001
Model Number
HY-DB
Warranty:
5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Hotel
Design Style:
Modern
Type:
Waterproof Board
Material:
HDPE
Shape:
Rectangle
Core Material:
OTHER
Format:
OTHER
Product Name:
Drainage Board
Color:
Black
Usage:
Engineering Construction Waterproofing
Function:
Contruction Waterproof
Feature:
Durable
Keywords:
Water Proofing Products
Size:
Accept Customized
Advantage:
Easy Construction
Thickness:
1mm
Minimum Order Quantity:
1000 square meters
Price:
$1.98/square meters >=1000 square meters
Packaging Details:
Plastic Packing Belts
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 0
Drainage Board
HDPE drainage board, also known as cavity drain board, drainage membrane, dimple board for drainage, is widely used in many civil
projects, with good performance of waterproofing on the surface of roofs, basement and retaining walls.
Drainage Board with holes is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the
surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas
can go through freely between dimples.
The dimple drainage board can be thickness in 08 mm, 10 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm and 60 mm.
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 1
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 2
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 3
Product Paramenters
Item
Item
Index
Tension at 10% Elongation (N/100mm) ≥
Tension at 10% Elongation (N/100mm) ≥
350
Max.Tension (N/100mm) ≥
Max.Tension (N/100mm) ≥
600
Elongation at Break (％) ≥
Elongation at Break (％) ≥
25
Tearing Strength (N) ≥
Tearing Strength (N) ≥
100
Compression
Maximum Strength at Compression Rate of 20％≥
150
Performance After Full Compression
No Cracks
Flexibility at Low Temperature
- 10℃ No Cracks





Heat Aging (80℃，168h)
Tension Retention at 10% Elongation
80
Max.Tension Retention(％)
90
Retention Rate of Elongation at Break (％) ≥
70
Max.Strength Retention Rate at Compression Rate of 20%,≥
90
Performance After Full Compression
No Cracks
Flexibility at Low Temperature
No Cracks
Longitudinal Flow Capacity (Lateral Pressure 150 KPa)
10
Product features
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 4
Main Features
(1)Waterproofing and drainage : from a channel,which water and gas can go through;
(2)Sound insulation and vibration isolation;
(3)Chemincal resistance,resist to plants' root;
(4)Easy to construction;
(5)Long life time.
Application Scenarios
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 5
Application
1. Greening Project
The garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc
2. Municipal Engineering
Airport, road embankment, subway, tunnel, landfill, etc
3. Construction
The upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc
4. Water Conservancy Project
The reservoir seepage water, reservoir, lake water seepage control, etc
5. Traffic Engineering
Highway, railway basement, roadbed, dam and slope protection layer, etc

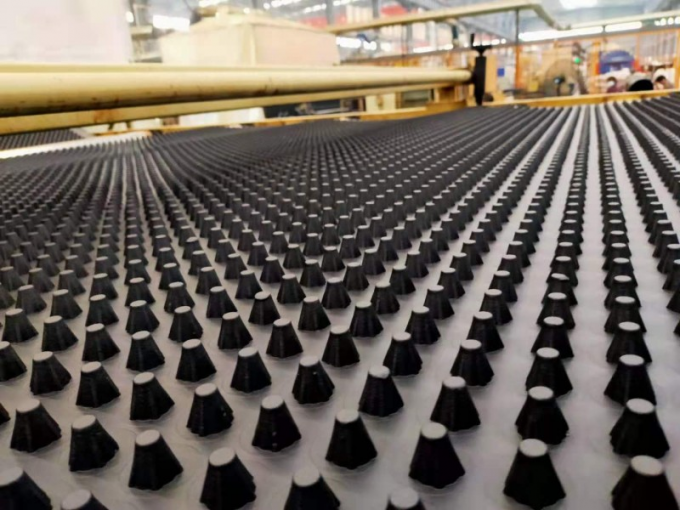

Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 6
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 7
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 8
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 9
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 10
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 11
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 12
Rectangle Waterproof HDPE Drainage Board Dimple Membrane Drain Mat for Green Roof 13
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Tai`an Hongyuan Geosynthetics Co., Ltd.
No. 88, Leigushi Street, Taian, Shandong, China
Sitemap |  Privacy Policy | China Good Quality Geosynthetic Clay Liners Supplier. Copyright © 2024 geosyntheticsmaterials.com . All Rights Reserved.
