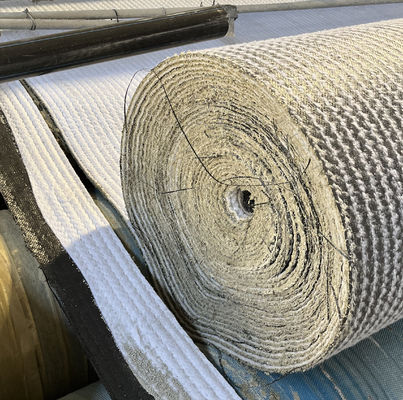

5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction

5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction

MOQ: 1000 square meters
Price: $2.76/square meters 1000-4999 square meters
Standard Packaging: white waterproof film
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Model Number
HY-GCL-3
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Villa
Design Style:
Modern
Specification:
5000-8000G/M2
Material:
Bentonite
Keyword:
Geo Synthetic Pond Liner Bentonite
Product Name:
4800-5500gsm Bentonite GCL
Usage:
Waterproof Projects
Type:
Waterproof Membrane
Feature:
High Tensile Strength
Weight:
5000g-9000g
WIDTH:
1-6m
LENGTH:
Request
Function:
Anti-leakage
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$2.76/square meters 1000-4999 square meters
Packaging Details:
white waterproof film
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description

GCL

As a new type of environmentally friendly and ecological composite anti-seepage material, Bentonite Waterproof Blanket has been widely used in civil engineering such as water conservancy, environmental protection, transportation, railway, civil aviation and other civil engineering with its unique anti-leakage performance. Foundation treatment and capping of waste landfills, seepage prevention of artificial lakes, reservoirs, channels, rivers, roof gardens, seepage prevention of famous underground structures such as basements, subways, tunnels, and underground passages, etc.
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 0
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 1
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 2
Product Paramenters
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 3
Items
Technical index
GCL-NP
GCL-OF
GCL-AH
Mass area ratio (g/m2)
≥4000
≥4000
≥4000
Swelling coefficient of Bentonite(ml/2g)
≥24
≥24
≥24
Ethylene blue adsorbed(g/100g)
≥30
≥30
≥30
Tensile strength(N/100mm)
≥600
≥650
≥600
Elongation at maximum load (%)
≥10
≥10
≥8
Peel strength (N/100mm)
≥40
≥40
≥40
Filtration (ml)
≤18
≤18
≤18
Durability of Bentonite (ml/2g)
≥20
≥20
≥20
Geosynthetic clay liners (GCLs) are an innovative waterproofing solution that have gained popularity in recent years. They are made up of a layer of bentonite clay, sandwiched between two geotextile layers, creating a barrier that is effective against water and other liquids. GCLs offer several benefits, including:
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 4

Versatility: GCLs can be used in a wide range of applications, from landfill liners to transportation infrastructure projects.
Environmental friendliness: GCLs are made up of natural materials and have a low environmental impact, making them an eco-friendly option.

Cost-effective: GCLs are typically more affordable than traditional waterproofing solutions, such as concrete and asphalt.
Easy installation: GCLs can be installed quickly and easily, reducing construction time and labor costs.
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 5
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 6

High durability: GCLs are resistant to UV rays, chemicals, and punctures, making them a reliable and long-lasting waterproofing solution.
Overall, geosynthetic clay liners offer an effective, versatile, and cost-effective waterproofing solution, making them a popular choice for construction and infrastructure projects worldwide..
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 7
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 8

ADVANCED PRODUCTION LINES

The company has the most advanced production equipment, with a complete production process, can produce 20000m2 GCL per day, product quality compliance with international standards.
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 9

Construction drawing of Sri Lanka Water Park
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 10

Construction drawing of the artificial lake
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 11

Landfill construction drawing
Product Quality Control Diagram
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 12
Product packaging
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 13
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 14
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 15
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 16
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 17
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 18
5000g-9000g Weight Bentonite Material Waterproof Membrane for Landfill Construction 19
FAQ

1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
