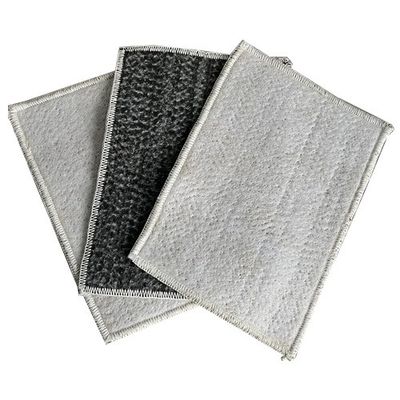

Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining

MOQ: 1000 square meters
Price: $3.12/square meters 1000-9999 square meters
Standard Packaging: waterproof film
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Model Number
GCL-3
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Other
Design Style:
Modern
Specification:
4000-8000GSM
Material:
Fabric+Bentonite
Product Name:
GCL (Geosythetic Clay Liners)
Keyword:
Geo Synthetic Pond Liner Bentonite
Type:
Waterproof Membrane
Length:
Request
Width:
1-6m(at Request)
Usage:
Artificial Lake
Feature:
High Tensile Strength
Thickness:
5.0mm
Function:
Waterproof
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$3.12/square meters 1000-9999 square meters
Packaging Details:
waterproof film
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description

GCL

As a new type of environmentally friendly and ecological composite anti-seepage material, Bentonite Waterproof Blanket has been widely used in civil engineering such as water conservancy, environmental protection, transportation, railway, civil aviation and other civil engineering with its unique anti-leakage performance. Foundation treatment and capping of waste landfills, seepage prevention of artificial lakes, reservoirs, channels, rivers, roof gardens, seepage prevention of famous underground structures such as basements, subways, tunnels, and underground passages, etc.
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 0
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 1
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 2
Product Paramenters
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 3
Items
Technical index
GCL-NP
GCL-OF
GCL-AH
Mass area ratio (g/m2)
≥4000
≥4000
≥4000
Swelling coefficient of Bentonite(ml/2g)
≥24
≥24
≥24
Ethylene blue adsorbed(g/100g)
≥30
≥30
≥30
Tensile strength(N/100mm)
≥600
≥650
≥600
Elongation at maximum load (%)
≥10
≥10
≥8
Peel strength (N/100mm)
≥40
≥40
≥40
Filtration (ml)
≤18
≤18
≤18
Durability of Bentonite (ml/2g)
≥20
≥20
≥20
Geosynthetic clay liners (GCLs) are an innovative waterproofing solution that have gained popularity in recent years. They are made up of a layer of bentonite clay, sandwiched between two geotextile layers, creating a barrier that is effective against water and other liquids. GCLs offer several benefits, including:
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 4

Versatility: GCLs can be used in a wide range of applications, from landfill liners to transportation infrastructure projects.
Environmental friendliness: GCLs are made up of natural materials and have a low environmental impact, making them an eco-friendly option.

Cost-effective: GCLs are typically more affordable than traditional waterproofing solutions, such as concrete and asphalt.
Easy installation: GCLs can be installed quickly and easily, reducing construction time and labor costs.
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 5
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 6

High durability: GCLs are resistant to UV rays, chemicals, and punctures, making them a reliable and long-lasting waterproofing solution.
Overall, geosynthetic clay liners offer an effective, versatile, and cost-effective waterproofing solution, making them a popular choice for construction and infrastructure projects worldwide..
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 7
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 8

ADVANCED PRODUCTION LINES

The company has the most advanced production equipment, with a complete production process, can produce 20000m2 GCL per day, product quality compliance with international standards.
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 9

Construction drawing of Sri Lanka Water Park
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 10

Construction drawing of the artificial lake
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 11

Landfill construction drawing
Product packaging
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 12
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 13
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 14
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 15
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 16
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 17
Waterproof Function Natural Sodium-Based Bentonite GCL for Landfill and Basement Lining 18
FAQ

1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
