Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake
  • name
  • name
  • name
  • name
  • name
  • name

Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake

MOQ: 1000 square meters
Price: $2.58/square meters 1000-49999 square meters
Standard Packaging: waterproof film
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Model Number
GCL-3
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Outdoor, Park
Design Style:
Modern
Specification:
3800G-7500G
Material:
Bentonite
Product Name:
4800-5500gsm Bentonite GCL
Keyword:
Geo Synthetic Pond Liner Bentonite
Type:
Waterproof Membrane
Name:
Professional Geo Synthetic Bentomat Bentonite Clay Liner
Usage:
Waterproof Projects
Function:
Waterproof
Weight:
3500g-8500g
Thickness:
5mm
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$2.58/square meters 1000-49999 square meters
Packaging Details:
waterproof film
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description

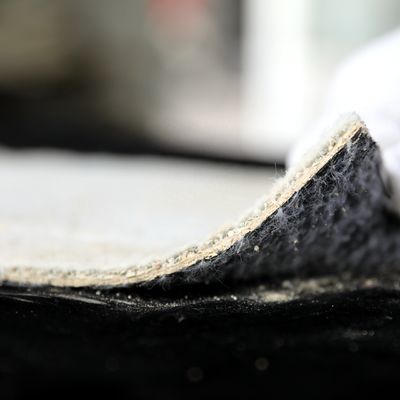

Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 0
GCL
Geosynthetic clay liner (GCL) is composed of high dilatability of sodium base bentonite filling between the special composite geotextile and nonwoven fabric. It made by the method of acupuncture or suture composite impervious material. Use acupuncture into GCL can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water.
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 1
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 2
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 3
Projects/ Technical data
GCL-NP Technical Indicators
Weight per unit area(g/m2)
more than 4000gsm and no less than specified value
Bentonie swell index(ml/2g)
≥24
Ethylene blue absorption(g/100g)
≥30
Tensile strength (N/100mm)
≥600
Racking strength(N/100mm)
≥40
Elongation at max load(%)
≥10
Permeability(m/s)
≤5.0x110^(-11)
Anti-static water pressure
0.4Mpa,1h,not seepage
Filtration loss (ml)
 ≤18
Bentonite durability (ml/2g)
 ≥20
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 4
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 5
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 6
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 7
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 8
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 9

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
Application Scenarios
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 10
1. The landfill anti-seepage closed treatment engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering. 4. Channel, the canal seepage control engineering.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 11

U.S. landfill

The construction of a large-scale landfill on Long Island in the United States uses bentonite waterproof blankets with a total area of 37,000 square meters. So far, there has been no quality problem.
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 12

Australian basement waterproofing

In the construction of a large basement in an Australian community, bentonite waterproof blankets are used for waterproofing measures, a total of 11,000 square meters, and there have been no quality problems in the construction so far.
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 13

Indonesia Wetland Park

Large-scale artificial river construction, waterproof measures using bentonite waterproof blankets totaling 46,000 square meters, construction has not had any quality problems.
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 14
Sri Lanka Water Park Project
Sri Lanka Water Park built an 800-square-meter artificial lake. The entire artificial lake uses bentonite waterproof blankets with a total of 13,000 square meters. It has been completed for many years, and there are no quality problems such as water leakage.
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 15
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 16
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 17
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 18
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 19
Packing & Delivery
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 20
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 21
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 22
Waterproof Membrane Professional Geo Synthetic Bentonite Clay Liner Large Artificial Lake 23
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,bentonite waterstop strips,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
