5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs
  • name
  • name
  • name
  • name
  • name
  • name

5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs

MOQ: 1000 square meters
Price: $1.92/square meters >=1000 square meters
Standard Packaging: waterproof film
Supply Capacity: 10000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYAN
Model Number
GCL -3
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Mall, Park
Design Style:
Modern
Specification:
5*30M
Material:
Bentonite
Product Name:
4800-5500gsm Bentonite GCL
Type:
Waterproof Membrane
Thickness:
5mm
Keyword:
Geo Synthetic Pond Liner Bentonite
Usage:
Waterproof Projects
Name:
Professional Geo Synthetic Bentomat Bentonite Clay Liner
Weight:
4000-6000g/m2
Certificate:
ISO9001
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$1.92/square meters >=1000 square meters
Packaging Details:
waterproof film
Supply Ability:
10000 Square Meter/Square Meters per Day
Product Description
Products Description
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 0
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 1
 BENTONITE GEOTEXTILE

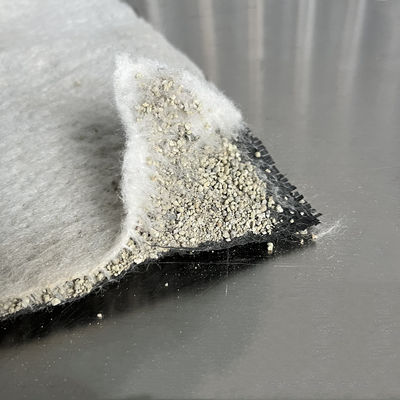

It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)
Product Paramenters
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 2
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 3
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 4
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 5
items
GCL-3
GCL-4
GCL-5
Customized
Comments
weight
3000g-7000g/m2
3000g-8000g/m2
3000g-10000g/m2
3000g-10000g/m2
as request
water content
8-12%
8-12%
8-12%
8-12%
thickness
5-7mm
5-8mm
5-15mm
5-15mm
as request
Swell index of bentonite granular
≥24ml/2g
≥24ml/2g
≥24ml/2g
≥24ml/2g
as request,
from 24-28
ml/2g
nonwoven geotextile
180-350g/m2
180-350g/m2
180-300g/m2
180-350g/m2
weight
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
raw materials, percentage of PP can be customized
Polypropylene woven geotextile
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
Usual stock is 130g/m2 and other weight needs to be customized
Circular or plain
Circular or plain
Circular or plain
Circular or plain
woven method
tensile strength
≥600N/100mm
≥800N/100mm
≥800N/100mm
≥600N/100mm
peel strength
≥40N/10cm
≥50N/10cm
≥40N/10cm
≥40N/10cm
Permeability coefficient(cm/s)
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 6
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 7

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 8
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 9

ADVANCED PRODUCTION LINES

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 10
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 11

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCL used as the lap between GCL.
Package: 50kg per woven geotextile bag.
Applications:
1.waterproof for rooftop garden,basement and so on;
2.waterproof forunderground,railway,city highway,oil drilling and so on;
3.Anti-seepage project of mud and stone reinforce
4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;
Product packaging
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 12
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 13
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 14
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 15
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 16
5*30M Waterproof Geosynthetic Clay Liner Customizable for Civil Engineering Needs 17
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast
Asia(10.00%),Mid East(10.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Can provide third-party quality inspection reports.

3. How about the delivery time?
General within 3-7 days after received the deposit.

4. why should you buy from us not from other suppliers?
Hongyuan International Co.,Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane, geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.

5. Can you produce the product according to customers' requirements?
Sure, we are professional manufacturer, OEM and ODM are both welcome.

6.Why geosynthetic clay liner can be waterproofing?
Bentonite has good adhesion,swelling, colloidal dispersion, thixotropy and cation exchange properties. When bentonite is hydrated, water molecules are adsorbed along the surface of the Si-Al-Si structural unit, which increases the distance between adjacent structural units. After hydration, the surface cations of bentonite are in a hydrated state, and after absorbing H2O, it becomes saturated and becomes a gel, and its durability can reach 200 years. In the confined space, the continuous water absorption and expansion make the waterproof blanket layer itself dense and its volume increases, so that it has a waterproof function by forming a negative pressure inside. Its permeability can be reduced to 10~9cm/s, and it is almost watertight.
