1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill
  • name
  • name
  • name
  • name
  • name
  • name

1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill

MOQ: 1000 square meters
Price: $1.93/square meters >=1000 square meters
Standard Packaging: waterproof film
Supply Capacity: 10000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN hongyuan
Model Number
GCL-5
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Office Building
Design Style:
Modern
Type:
2000-3000g
Product Name:
GCL
Material:
Bentonite
Keyword:
GCL
Color:
Black White
Function:
Waterproof Storage Drainage Isolation
Height:
38mm 48mm 68mm
Width:
1-6m
Feature:
High Compressive Strength
Certificate:
ISO9001
Size:
Customized Size
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$1.93/square meters >=1000 square meters
Packaging Details:
waterproof film
Supply Ability:
10000 Square Meter/Square Meters per Day
Product Description
Products Description
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 0
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 1

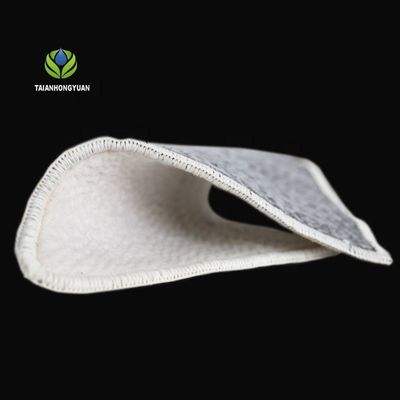

 BENTONITE GEOTEXTILE
It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)
Geosynthetic Clay Liner GCL For Basement Landfill
Product Paramenters
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 2
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 3
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 4
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 5
items
GCL-3
GCL-4
GCL-5
Customized
Comments
weight
3000g-7000g/m2
3000g-8000g/m2
3000g-10000g/m2
3000g-10000g/m2
as request
water content
8-12%
8-12%
8-12%
8-12%
thickness
5-7mm
5-8mm
5-15mm
5-15mm
as request
Swell index of bentonite granular
≥24ml/2g
≥24ml/2g
≥24ml/2g
≥24ml/2g
as request,
from 24-28
ml/2g
nonwoven geotextile
180-350g/m2
180-350g/m2
180-300g/m2
180-350g/m2
weight
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
raw materials, percentage of PP can be customized
Polypropylene woven geotextile
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
Usual stock is 130g/m2 and other weight needs to be customized
Circular or plain
Circular or plain
Circular or plain
Circular or plain
woven method
tensile strength
≥600N/100mm
≥800N/100mm
≥800N/100mm
≥600N/100mm
peel strength
≥40N/10cm
≥50N/10cm
≥40N/10cm
≥40N/10cm
Permeability coefficient(cm/s)
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 6
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 7

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 8
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 9

ADVANCED PRODUCTION LINES

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 10
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 11

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCL used as the lap between GCL.
Package: 50kg per woven geotextile bag.
Applications:
1.waterproof for rooftop garden,basement and so on;
2.waterproof forunderground,railway,city highway,oil drilling and so on;
3.Anti-seepage project of mud and stone reinforce
4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;
Product packaging
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 12
projects
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 13
Company Profile
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 14
Exhibition
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 15
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 16
Marketing Campaign
1-6m Width Geosynthetic Clay Liner GCL for Basement Landfill 17
