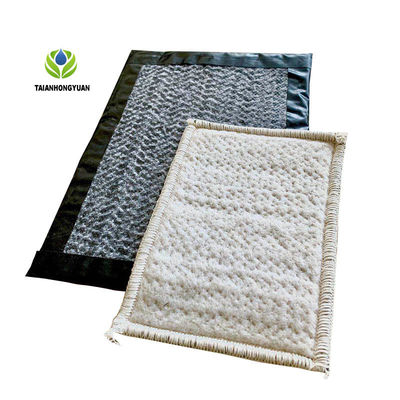

Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining

MOQ: 1000 square meters
Price: $1.98/square meters >=1000 square meters
Standard Packaging: waterproof film
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Model Number
GCL-3
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Mall, Outdoor
Design Style:
Farmhouse
Type:
4000G-5500G
Product Name:
GCL
Material:
Bentonite
Keyword:
Waterproof Blanket
Color:
Black White
Function:
Waterproof Storage Drainage Isolation
Width:
1-6m
Height:
38mm 48mm 68mm
Length:
30-50m
Package:
1 Roll / Bag
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$1.98/square meters >=1000 square meters
Packaging Details:
waterproof film
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 0
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 1
 BENTONITE GEOTEXTILE
It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)
Product Paramenters
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 2
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 3
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 4
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 5
items
GCL-3
GCL-4
GCL-5
Customized
Comments
weight
3000g-7000g/m2
3000g-8000g/m2
3000g-10000g/m2
3000g-10000g/m2
as request
water content
8-12%
8-12%
8-12%
8-12%
thickness
5-7mm
5-8mm
5-15mm
5-15mm
as request
Swell index of bentonite granular
≥24ml/2g
≥24ml/2g
≥24ml/2g
≥24ml/2g
as request,
from 24-28
ml/2g
nonwoven geotextile
180-350g/m2
180-350g/m2
180-300g/m2
180-350g/m2
weight
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
raw materials, percentage of PP can be customized
Polypropylene woven geotextile
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
Usual stock is 130g/m2 and other weight needs to be customized
Circular or plain
Circular or plain
Circular or plain
Circular or plain
woven method
tensile strength
≥600N/100mm
≥800N/100mm
≥800N/100mm
≥600N/100mm
peel strength
≥40N/10cm
≥50N/10cm
≥40N/10cm
≥40N/10cm
Permeability coefficient(cm/s)
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 6
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 7

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 8
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 9

ADVANCED PRODUCTION LINES

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 10
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 11

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCL used as the lap between GCL.
Package: 50kg per woven geotextile bag.
Applications:
1.waterproof for rooftop garden,basement and so on;
2.waterproof forunderground,railway,city highway,oil drilling and so on;
3.Anti-seepage project of mud and stone reinforce
4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;
Product packaging
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 12
projects
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 13
Company Profile
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 14
Exhibition
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 15
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 16
Marketing Campaign
Waterproof Blanket Geosynthetic Clay Liner Durable Solution for Artificial Lake Lining 17
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
