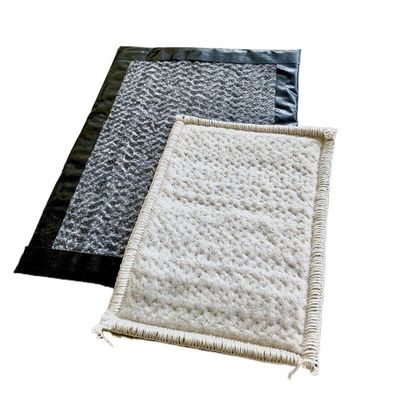

CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner
  • name
  • name
  • name
  • name
  • name
  • name

CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner

MOQ: 1000 square meters
Price: $1.99/square meters >=1000 square meters
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIANHONGYUAN
Model Number
VOLTEX
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Villa
Design Style:
Modern
Specification:
5000
Type:
Other Earthwork Products
Weight:
3500g-6500g
Minimum Order Quantity:
1000 square meters
Price:
$1.99/square meters >=1000 square meters
Product Description
Products Description
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 0
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 1
 BENTONITE GEOTEXTILE- What is geosynthetic clay liners?
It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)
Product Paramenters
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 2
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 3
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 4
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 5
items
GCL-3
GCL-4
GCL-5
Customized
Comments
weight
3000g-7000g/m2
3000g-8000g/m2
3000g-10000g/m2
3000g-10000g/m2
as request
water content
8-12%
8-12%
8-12%
8-12%
thickness
5-7mm
5-8mm
5-15mm
5-15mm
as request
Swell index of bentonite granular
≥24ml/2g
≥24ml/2g
≥24ml/2g
≥24ml/2g
as request,
from 24-28
ml/2g
nonwoven geotextile
180-350g/m2
180-350g/m2
180-300g/m2
180-350g/m2
weight
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
raw materials, percentage of PP can be customized
Polypropylene woven geotextile
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
Usual stock is 130g/m2 and other weight needs to be customized
Circular or plain
Circular or plain
Circular or plain
Circular or plain
woven method
tensile strength
≥600N/100mm
≥800N/100mm
≥800N/100mm
≥600N/100mm
peel strength
≥40N/10cm
≥50N/10cm
≥40N/10cm
≥40N/10cm
Permeability coefficient(cm/s)
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 6
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 7

Product characters of geosynthetic clay liners

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 8
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 9

ADVANCED PRODUCTION LINES OF GEOSYNTHETIC CLAY LINERS

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 10
CE Certified Natural Sodium Bentonite Geotextile PE Coated Geosynthetic Clay Liner 11

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCLs used as the lap between GCLs.
Package: 50kg per woven geotextile bag.
Applications OF GEOSYNTHETIC CLAY LINERS:
1.waterproof for rooftop garden,basement and so on;
2.waterproof for underground,railway,city highway,oil drilling and so on;
3.Anti-seepage project of mud and stone reinforce
4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;
