8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length
  • name
  • name
  • name
  • name
  • name
  • name

8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length

MOQ: 1000 square meters
Price: $1.00 - $5.00/square meters
Standard Packaging: strips
Supply Capacity: 10000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
hongyuan
Model Number
hy-d
Material:
PE
Thickness:
8mm,10mm, 12mm, 20mm
Size:
2m
Processing Service:
Cutting, Moulding
Colour:
As You Like
Port:
Qingdao
Minimum Order Quantity:
1000 square meters
Price:
$1.00 - $5.00/square meters
Packaging Details:
strips
Supply Ability:
10000 Square Meter/Square Meters per Day
Product Description

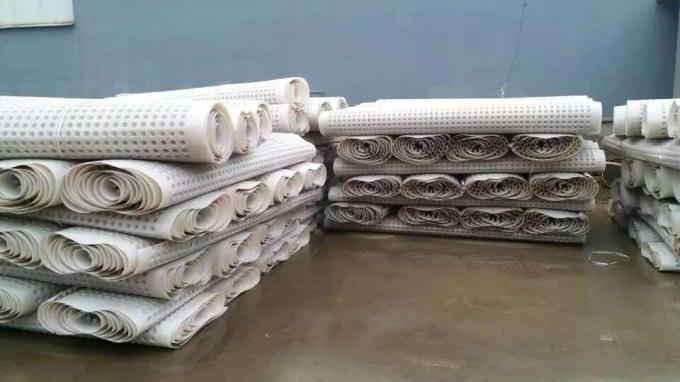

Packaging & Shipping



8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 08mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 1





Company Information

 8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 2



   8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 3

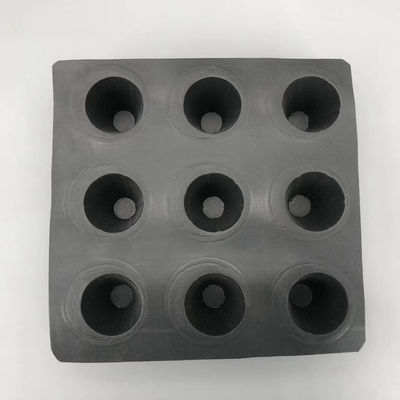

Plastic dimple waterproof drainage board
Dimple waterproof  drainage board



plasic drainage board



1. Dimple height  : 8mm 12mm 16mm and 20mm ;
2. Good drainage  and waterproofing ;
3. ISO9001, GB certifacate;



Drainage board Specifications

 Plastic drainage board is a dimple geomembrane,

which produced by extruding plastic sheet into dimple shape.

These dimples, in spatial structure with certain height ,

can resist long-term high pressure without deformation.

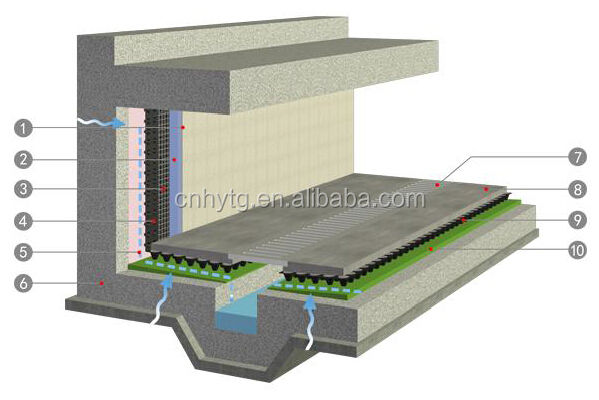

Drainage board Typical application:



 8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 4
8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 5



Landscape engineering:



garage top greening,roof garden,football field,golf course,beach project.



Municipal engineering:



road base,subway,tunnel,landfill.



Construction engineering :



upper or bottom layer of building foundation,basement wall,
bedding filtration and heat insulation.



Traffic engineering:



highway,railway basement,dam and slope.







             Technical Specifications:

Property Test Method Unit Minimum Average Roll Value (M.A.R.V.)
Weight (typical) ASTM D5261 oz/yd2 (g/m2 5.6 (190)
Grab Tensile ASTM D4632 lbs (kN) 370 x 250 (1.65 x 1.11)
Grab Elongation ASTM D4632 % 16 x 15
Trapezoid Tear Strength ASTM D4533 lbs (kN) 100 x 60 (.444 x .267)
Puncture Resistance ASTM D4833 lbs (kN) 120 (.53)
Permattivity* ASTM D4491 sec-1 .28
Water Flow* ASTM D4491 gpm/ft2 (l/min/m) 18 (733)
A.O.S* ASTM D4751 oz/yd2 (g/m2 70 (.212)
UV Resistance ASTM D4355 %/hrs 90/500

 8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 6

8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 7







8mm-20mm Thickness Greenroof Dimple Mat Drainage Board with PE Material 2m Length 8
