Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder
  • name
  • name
  • name
  • name
  • name
  • name

Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder

MOQ: 1000 square meters
Price: $3.29/square meters 1000-4999 square meters
Standard Packaging: waterproof film
Supply Capacity: 20000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIAN HONGYUAN
Model Number
HY-GCL3
Warranty:
5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Office Building, Outdoor
Design Style:
Modern
Specification:
5000-8000G/M2
Material:
Bentonite
Product Name:
GCL (Geosythetic Clay Liners)
Keyword:
Geo Synthetic Pond Liner Bentonite
Usage:
Waterproof Projects
Type:
Waterproof Membrane
Feature:
High Tensile Strength
WIDTH:
1-6m(at Request)
Weight:
5000g-9000g
Packing:
Waterproof Film
Port:
QINGDAO
Minimum Order Quantity:
1000 square meters
Price:
$3.29/square meters 1000-4999 square meters
Packaging Details:
waterproof film
Supply Ability:
20000 Square Meter/Square Meters per Day
Product Description
Products Description
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 0

GCL

Geosynthetic clay liner (GCL) is composed of high dilatability of sodium base bentonite filling between the special composite geotextile and nonwoven fabric. It made by the method of acupuncture or suture composite impervious material. Use acupuncture into GCL can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water.
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 1
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 2
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 3

Product characters

1. Environment friendly 2. Permanent waterproof, excellent performance 3. Easy to construct 4. Strong Self-Restore Capacity



Projects/ Technical data
GCL-NP Technical Indicators
Weight per unit area(g/m2)
more than 4000gsm and no less than specified value
Bentonie swell index(ml/2g)
≥24
Ethylene blue absorption(g/100g)
≥30
Tensile strength (N/100mm)
≥600
Racking strength(N/100mm)
≥40
Elongation at max load(%)
≥10
Permeability(m/s)
≤5.0x110^(-11)
Anti-static water pressure
0.4Mpa,1h,not seepage
Filtration loss (ml)
≤18
Bentonite durability (ml/2g)
≥20
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 4
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 5

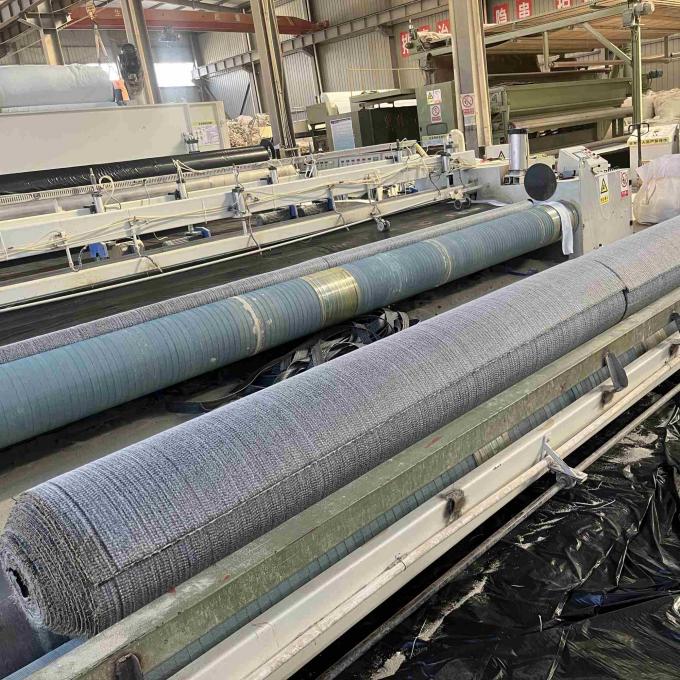

ADVANCED PRODUCTION LINES

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.

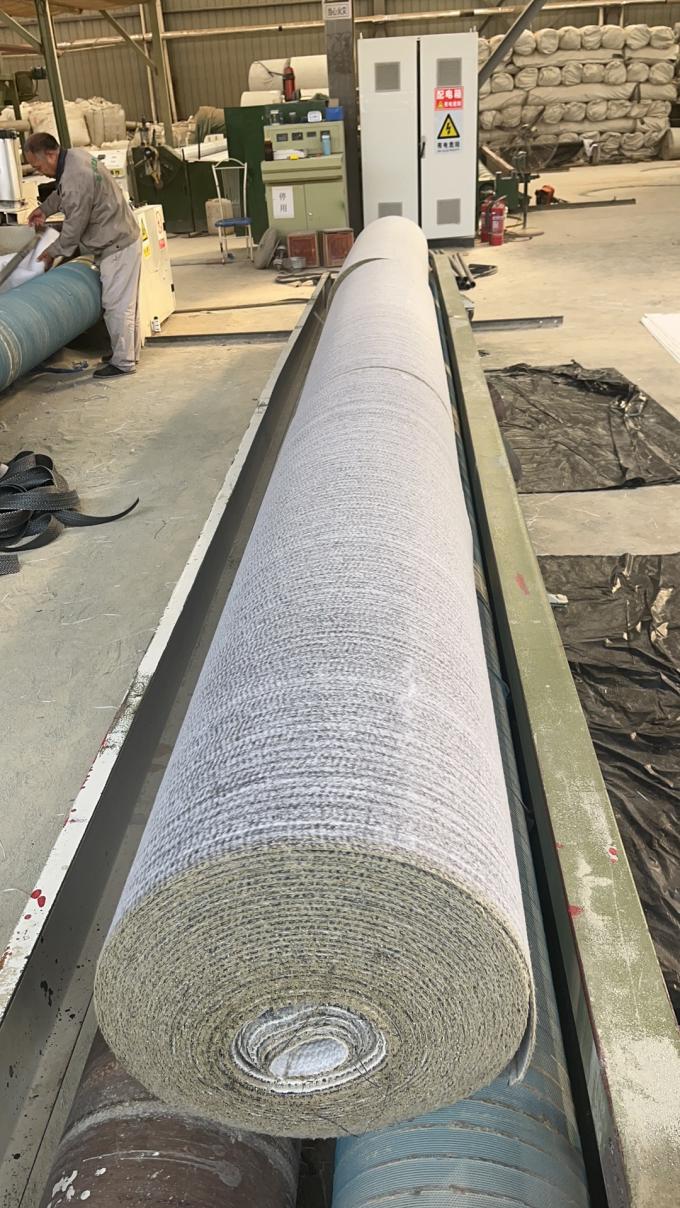

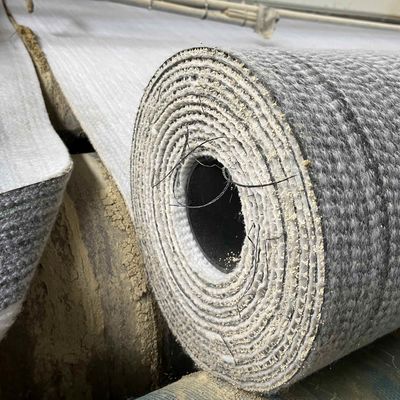

Product Details Show
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 6
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 7
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 8
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 9
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 10
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 11
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 12
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 13

Products with inner core


Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 14

Products without inner core


Application Scenarios
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 15
Applications:
1. The landfill anti-seepage closed treatment engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering.
4. Channel, the canal seepage control engineering.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 16

U.S. landfill

The construction of a large-scale landfill on Long Island in the United States uses bentonite waterproof blankets with a total area of 37,000 square meters. So far, there has been no quality problem.
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 17

Australian basement waterproofing

In the construction of a large basement in an Australian community, bentonite waterproof blankets are used for waterproofing measures, a total of 11,000 square meters, and there have been no quality problems in the construction so far.
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 18
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 19
Basement construction
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 20
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 21

Artificial lake construction

Construction of waste landfill in Indonesia

Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 22
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 23
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 24
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 25
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 26
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 27
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 28
Waterproof Bentonite Clay Liners for Basement Projects 5500gm2 GCLS Geotextile Powder 29
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast
Asia(10.00%),Mid East(10.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Can provide third-party quality inspection reports；

3. How about the delivery time?
General within 3-7 days after received the deposit.

4. why should you buy from us not from other suppliers?
Hongyuan International Co.,Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane, geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.

5. Can you produce the product according to customers' requirements?
Sure, we are professional manufacturer, OEM and ODM are both welcome.

6.Why geosynthetic clay liner can be waterproofing?
Bentonite has good adhesion, swelling, colloidal dispersion, thixotropy and cation exchange properties. When bentonite is hydrated, water molecules are adsorbed along the surface of the Si-Al-Si structural unit, which increases the distance between adjacent structural units. After hydration, the surface cations of bentonite are in a hydrated state, and after absorbing H2O, it becomes saturated and becomes a gel, and its durability can reach 200 years. In the confined space, the continuous water absorption and expansion make the waterproof blanket layer itself dense and its volume increases, so that it has a waterproof function by forming a negative pressure inside. Its permeability can be reduced to 10~9cm/s, and it is almost watertight.
