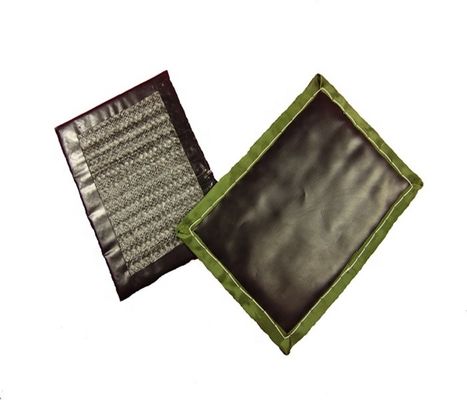

Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing
  • name
  • name
  • name
  • name
  • name
  • name

Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing

MOQ: 1000 square meters
Price: $2.52/square meters >=1000 square meters
Standard Packaging: waterproof film
Supply Capacity: 10000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
hy
Model Number
gcl-1
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Hotel, Villa
Design Style:
Modern
Type:
Waterproof Blanket
Material:
Rubber
Shape:
Square
Core Material:
Bentonite
Product Name:
VOLTITE GEOSYNTHETIC CLAY LINER
Port:
Qingdao
Minimum Order Quantity:
1000 square meters
Price:
$2.52/square meters >=1000 square meters
Packaging Details:
waterproof film
Supply Ability:
10000 Square Meter/Square Meters per Day
Product Description
Products Description
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 0
most popular bentonite membrane for waterproof projects
GCL-4 consists of a layer of bentonite encapsulated between two geotextiles (a nonwoven and a woven polypropylene geotextiles), needle punched together and laminated on one side to a polyethylene membrane for maximum performances under a wide variety of field conditions. This integrated matrix of bentonite and needle punched fibers provides high shear strength and allows the GCL-4 to keep low permeability even in presence of adverse installation conditions. The GCL-4 has high internal shear strength characteristics for steep slope applications.

Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 1
APPLICATIONS:
GCL-4 is designed for below-grade vertical and horizontal structural foundation surfaces.
Typical cast-in-place concrete applications include backfilled concrete walls, earth-covered roofs, structural slabs, tunnels, and property line construction. Property line construction applications include soldier pile and lagging, metal sheet piling, shotcrete and stabilized earth retention walls. Applications may include structures under continuous or intermittent.
Product Paramenters
Item

unit
Test method
specifications





GCL-PE4000
GCL- PE 5500
GEOTEXTILE





Woven geotextile layer

g/m2
ASTM D5261
130
130
Nonwoven geotextile
PP
g/m2
ASTM D5261
180/200
200/210/220

PET
g/m2
ASTM D5261
180/200
200/220/300
BENTONITE





Swell index

ml/2g
ASTM D5890
≥24
≥25
Mass per unit area

g/m2
ASTM D5993
≥4000
≥5500
GEOSYNTHETIC CLAY LINER





Mass per unit area

g/m2
ASTM D5261
≥4400
≥5800
Grab tensile strength
MD
N
ASTM D4632
≥700
≥700

CD
N
ASTM D4632
≥500
≥500
Peel strength

N/10cm
ASTM D6469
≥60
≥60
CBR puncture strength

N
ASTM D6241
≥1000
≥1000
Elongation

%
ASTM D6241
≥10
≥10
Permeability/hydrated conductivity

m/s
ASTM D5887
≤1.5×10-12
≤1.5×10-12
Fluid loss

ml
ASTM D5891
≤18
≤18
HDPE GEOMEMRBANE





thickness

mm
ASTM D5199
≥0.1/0.2/0.3
≥0.1/0.2/0.3
Peel strength

N/10cm
ASTM D6469
≥60
≥60
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 2
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 3
Certifications
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 4
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 5
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 6
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 7
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 8
Company Profile
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 9
Exhibition
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 10
Product packaging
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 11
Marketing Campaign
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 12
projects
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 13
Bentoshield Bentonite Geotextile Clay Liner for Modern Design Waterproofing 14
