Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner

MOQ: 5000 square meters
Price: $1.89/square meters >=5000 square meters
Standard Packaging: waterproof film
Supply Capacity: 10000 Square Meter/Square Meters per Day
Detail Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
TAIANHONGYUAN
Model Number
gcl-3
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Villa, Building Engineering
Design Style:
Modern
Specification:
5000g/m2
Type:
Other Earthwork Products
Weight:
3500g-6500g
WIDTH:
1m-6m.Normal 5.8m
Usage:
Waterproof Projects
Certifications:
ISO9001/ISO14001
Port:
Qingdao
Minimum Order Quantity:
5000 square meters
Price:
$1.89/square meters >=5000 square meters
Packaging Details:
waterproof film
Supply Ability:
10000 Square Meter/Square Meters per Day
Product Description
Products Description
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 0
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 1

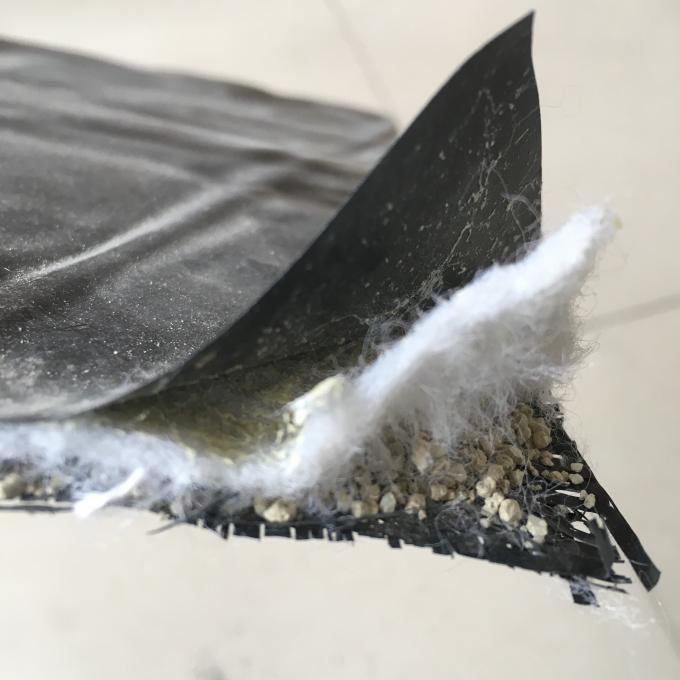

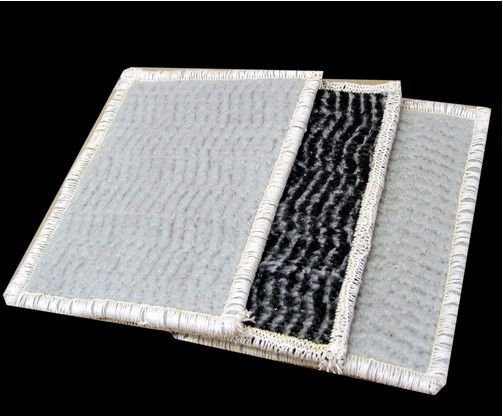

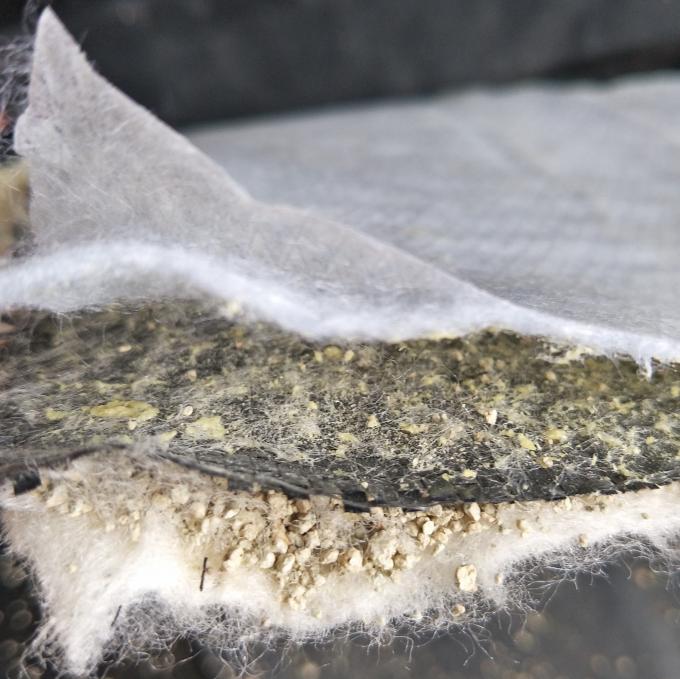

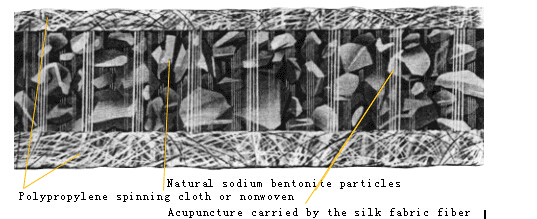

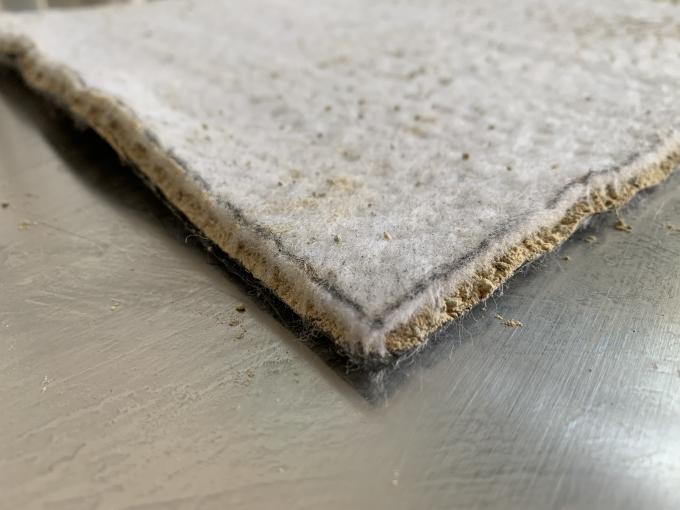

 BENTONITE GEOTEXTILE

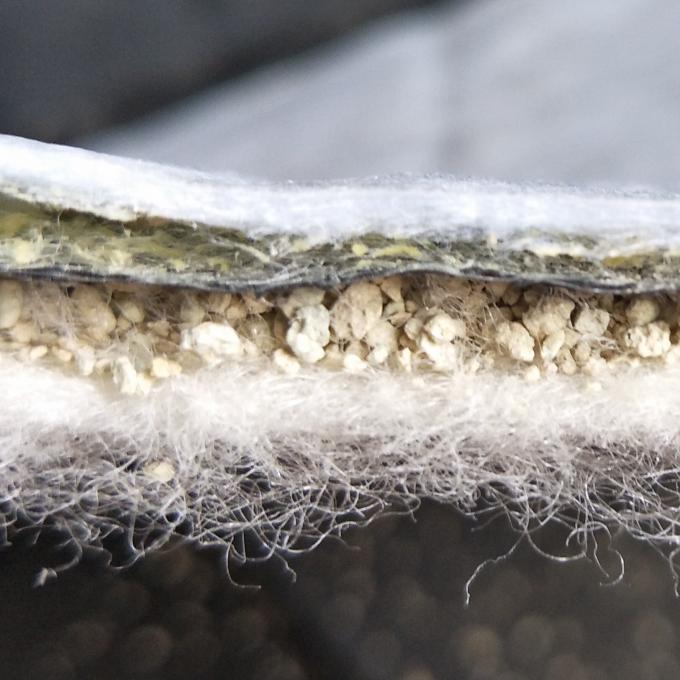

It is composed of 3 levels. The upper level and the lower level are woven geotextile and non woven textile.
The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special
processing.
This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.
GCL can be applied separately, or combined with high density polyethylene (HDPE)
Product Paramenters
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 2
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 3
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 4
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 5
items
GCL-3
GCL-4
GCL-5
Customized
Comments
weight
3000g-7000g/m2
3000g-8000g/m2
3000g-10000g/m2
3000g-10000g/m2
as request
water content
8-12%
8-12%
8-12%
8-12%
thickness
5-7mm
5-8mm
5-15mm
5-15mm
as request
Swell index of bentonite granular
≥24ml/2g
≥24ml/2g
≥24ml/2g
≥24ml/2g
as request,
from 24-28
ml/2g
nonwoven geotextile
180-350g/m2
180-350g/m2
180-300g/m2
180-350g/m2
weight
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
Polypropylene or polyester
raw materials, percentage of PP can be customized
Polypropylene woven geotextile
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
110g/m2, 125g/m2, 150g/m2, 185g/m2, 200g/m2
Usual stock is 130g/m2 and other weight needs to be customized
Circular or plain
Circular or plain
Circular or plain
Circular or plain
woven method
tensile strength
≥600N/100mm
≥800N/100mm
≥800N/100mm
≥600N/100mm
peel strength
≥40N/10cm
≥50N/10cm
≥40N/10cm
≥40N/10cm
Permeability coefficient(cm/s)
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
≤5.0×10-11
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 6
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 7

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 8
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 9

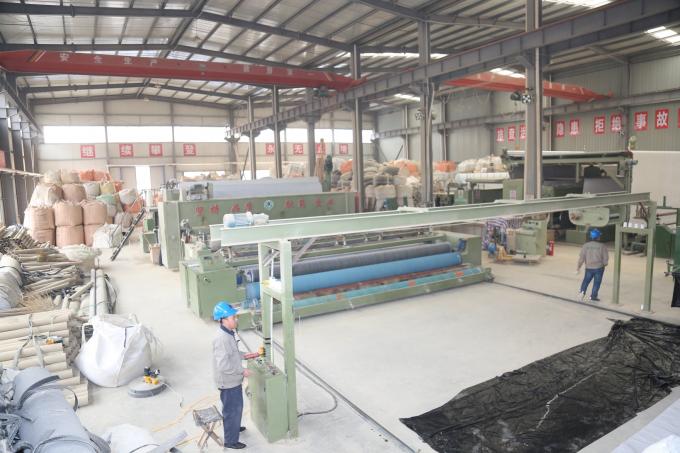

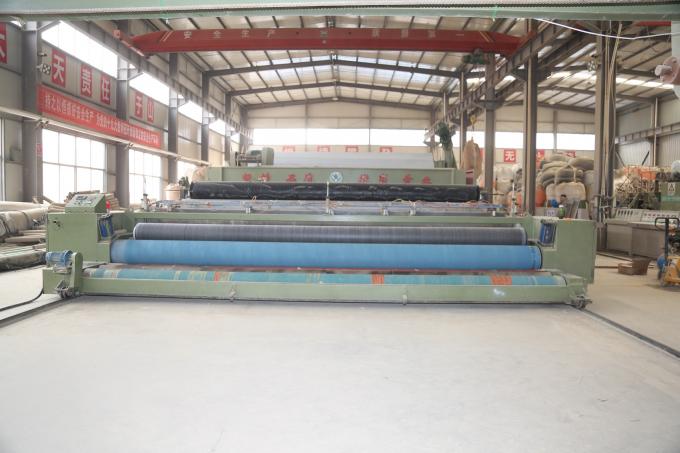

ADVANCED PRODUCTION LINES

There are 3 advanced production lines in our workshop and we can produce 20000m2 GCL per day. All the products are tested and checked carefully before the shipment.
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 10
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 11

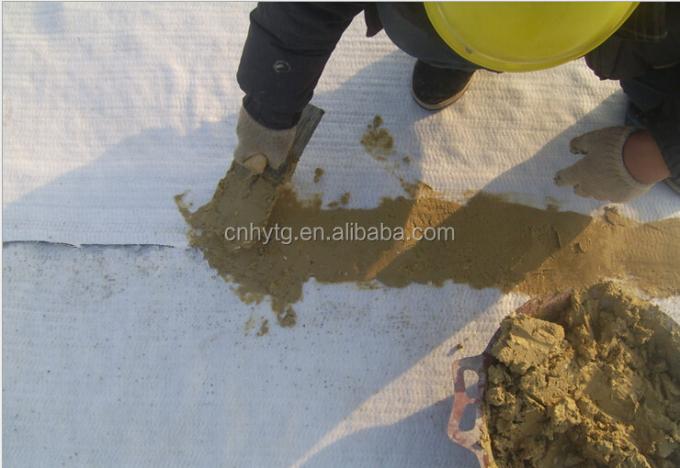

BENTONITE POWDER OR GRANULES FOR SEALING

1.Bentonite sealing powder or granules: It is the identical to the bentonite grain of the GCL used as the lap between GCL.
Package: 50kg per woven geotextile bag.
Applications:
1.waterproof for rooftop garden,basement and so on;
2.waterproof forunderground,railway,city highway,oil drilling and so on;
3.Anti-seepage project of mud and stone reinforce
4.desert and environment improvement,trash stuff zone,artificial lake and artificial sight and so on; 5.reservoir,dam,irrigation channel and so on;
Certifications
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 12
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 13
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 14
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 15
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 16
Product packaging
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 17

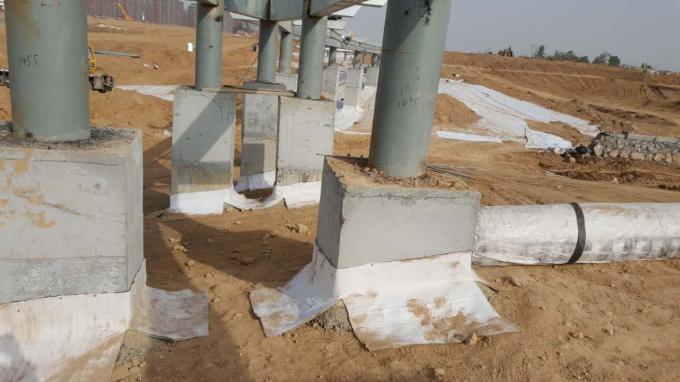

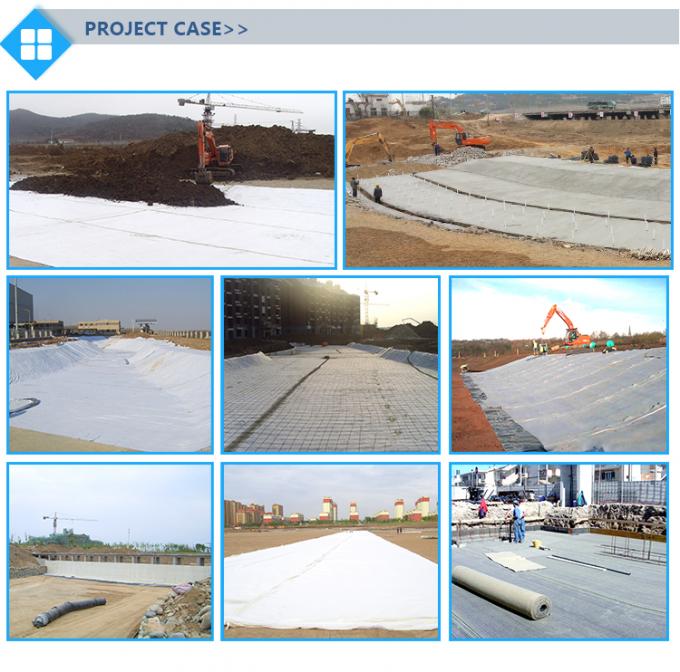

projects
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 18
Company Profile
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 19
Exhibition
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 20
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 21
Marketing Campaign
Bentonite Geotextile for Pond Liner Natural Sodium Bentonite Geosynthetical Clay Liner 22
