| MOQ: | 1000 square meters |
| Price: | $0.60/square meters >=1000 square meters |
| Standard Packaging: | woven cloth |
| Supply Capacity: | 10000 Square Meter/Square Meters per Day |
Introduction:
1. polypropylene (PP), or polyester (PET) material , needle punched
2. weight: 100g/m² to 1500g/m²
width : 1.0m-8m
length: 50-100m (or at requested)
monolayer or multilayer (reinforcement geotextiles)
long fiber or short fiber
3.Color: all kinds of color are available.
4.The fabric can also be heat treated by infrared at customer's requirements.
APPLICATIONS
1. Filtration
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.

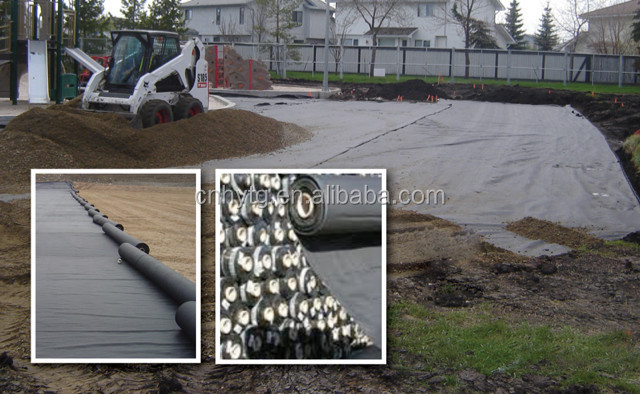

2 .Separation
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials.
It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.

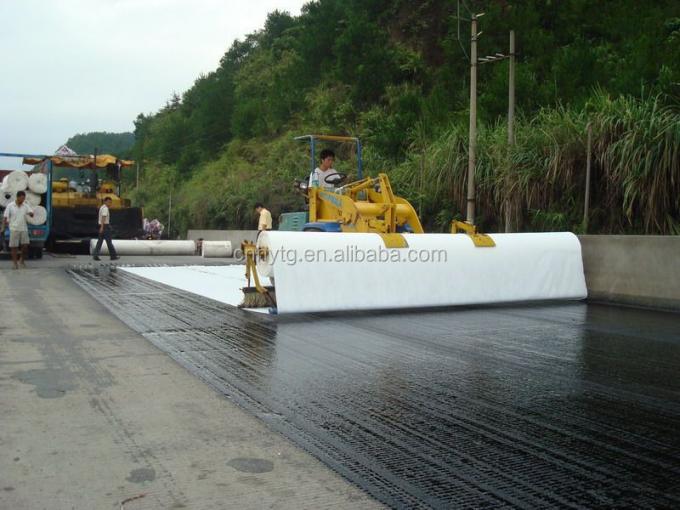

3. Reinforcement
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress,
prevents the side-displacement of the earth body and improves the earth body stability.
4 .Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
Technical data of the nonwoven geotextile:
| WEIGHT (g) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | NOTE |
| BASIS WEIGHT TOLERANCE (%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| THICKNESS ≥MM | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
| TENSILE STRENGTH AT BREAKING ≥KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | MD&CD |
| CBR PLUNGER STRENGTH ≥KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
| TEARING STRENGTH ≥KN | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | |
| BREADTH TOLERANCE (%) | -0.5 | |||||||||||
| ELONGATION AT BREAKING (%) | 25-100 | MD&CD | ||||||||||
| EOS O90mm | 0.07-0.2 | |||||||||||
| VERTICAL PERMEABILITY (CM/S) | K×(10-1~~10-3) | K=1.0-9.9
| ||||||||||
|
|
